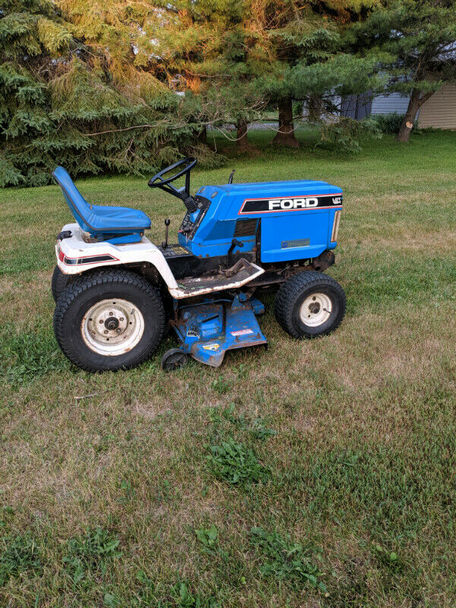

Ford LGT-18H

Production: 1985 - 1991

Production
Distributor:	Ford
Manufacturer:	Gilson/Lawn-Boy
Type:	Garden tractor

Mechanical
Chassis:	4x2 2WD
Steering:	manual sector and pinion
Brakes:	caliper disc on transaxle
Cab:	Open operator station. Vinyl soft cab optional.
Transmission:	hydostatic

Capacity
Fuel:	4 gal 15.1 L

Tractor hitch
Rear Type:	0 (optional)
Type:	sleeve hitch

Power Take-off (PTO)
Rear PTO:	optional

Engine Detail
Kohler
gasoline
2-cylinder
air-cooled
Displacement:	691 cc 42.2 ci
Bore/Stroke:	3.1x2.8 inches 79 x 71 mm
Power (gross):	18 hp 13.4 kW
Air cleaner:	dual element with pre-cleaner
Starter volts:	12
Oil capacity:	1.5 qts 1.4 L

Transmission
Type:	hydostatic
Gears:	infinite (2-range) forward and reverse
Oil capacity:	6 qts 5.7 L

Dimensions
Wheelbase:	49 inches 124 cm
Length:	73.2 inches 185 cm
Width:	36.5 inches 92 cm
Height (steering wheel):	39.5 inches 100 cm
Shipping:	958 lbs 434 kg (with 48" deck)
Ground clearance:	7 inches 17 cm (transmission)
Clearance (front axle):	10.6 inches 26 cm
