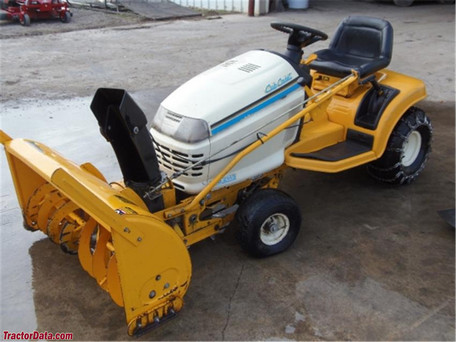

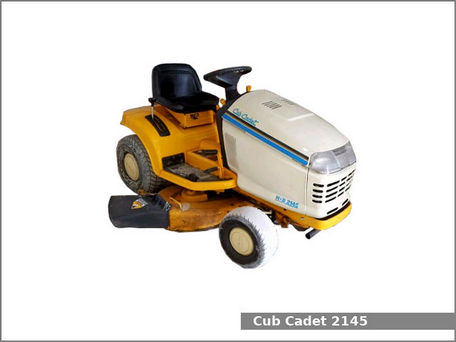

Cub Cadet HDS 2145

Production: 1994 - 1995

2145 Serial Location

Serial number plate on the left side of frame above front axle.

Electrical
Ground	negative
Charging amps	15
Battery volts	12

Engine Detail
Onan
gasoline
1-cylinder
air-cooled
Displacement	388 cc 23.7 ci
Bore/Stroke	3.31x2.76 inches 84 x 70 mm
Power (gross)	14 hp 10.4 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Sparkplug gap	0.035 inches 0.889 mm

Transmission
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

Dimensions
Wheelbase	47 inches 119 cm
Length	72 inches 182 cm
Width	51 inches 129 cm
Height (steering wheel)	42 inches 106 cm
Ground clearance	6 inches 15 cm
Front tread	30 inches 76 cm
Rear tread	27.5 inches 69 cm
