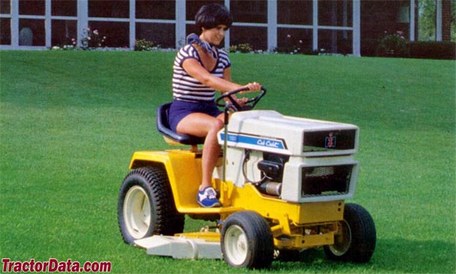

Cub Cadet 1100
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Cub Cadet (a part of International Harvester) |
| Type | Garden tractor |
| Factory | Louisville, Kentucky, USA |
| The Cub Cadet 1100 was an economy model of the "Quietline" era. It was the only model to use a Briggs engine and used a Peerless transaxle instead of the heavier IH Cub Cadet rear end. | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | dry disc |
| Cab | Open operator station. |
Tractor hitch | |
| Type | sleeve hitch |
Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | electric |
| Front RPM | 3400 |
1100 Serial Numbers | |
| 1974 | 530001 |
| 1975 | 536073 |
| 1976 | 572840 |
| 1977 | 602118 |
| 1978 | 621744 |
| 1979 | 643507 |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery volts | 12 |
Engine Detail | |
| Briggs & Stratton 253417 | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement | 399 cc 24.36 ci |
| Bore/Stroke | 3.4375x2.625 inches 87 x 67 mm |
| Power (gross) | 11 hp 8.2 kW |
| Air cleaner | dry |
| Rated RPM | 3400 |
| Torque | 16.8 lb-ft 22.8 Nm |
| Torque RPM | 1575 |
| Starter volts | 12 |
Transmission | |
| Transmission | Peerless gear |
| Gears | 4 forward and 1 reverse |
Dimensions | |
| Wheelbase | 44 inches 111 cm |
| Length | 69 inches 175 cm |
| Width | 37.5 inches 95 cm |
| Height (steering wheel) | 42.5 inches 107 cm |
| Operating weight | 569 lbs 258 kg |
| Ground clearance | 7.5 inches 19 cm |
| Front tread | 29 inches 73 cm |
| Rear tread | 29 inches 73 cm |
