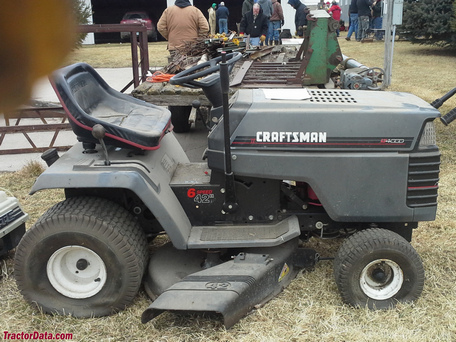

Craftsman 917.25569

Production: 1992

Production
Distributor:	Craftsman (a part of Sears)
Manufacturer:	AYP
Type:	Lawn tractor

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	6-speed gear

Capacity
Fuel:	3.5 gal 13.2 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	manual lever

Electrical
Ground:	negative
Charging amps:	3 (battery)
5 (headlights)

Engine Detail
Kohler CV14S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement:	398 cc 24.3 ci
Bore/Stroke:	3.43x2.64 inches 87 x 67 mm
Power (gross):	14 hp 10.4 kW
Starter:	electric
Starter volts:	12
Sparkplug:	Champion RC12YC
Sparkplug gap:	0.030 inches 0.762 mm

Transmission
Transmission:	Dana
Type:	gear
Gears:	6 forward and 1 reverse
