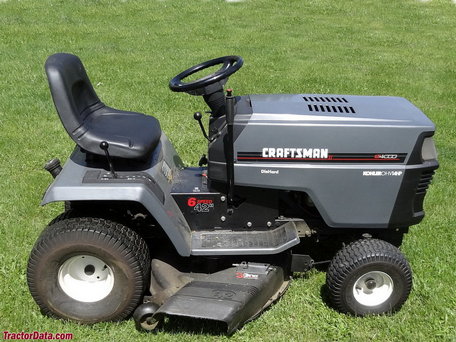

Craftsman 917.25545

Production: 1993 - 1994

Production
Distributor	Craftsman (a part of Sears)
Manufacturer	AYP
Type	Lawn tractor
Original price	$1,799 (1993 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual idler pulley

Electrical
Ground	negative
Charging amps	3 (battery)
5 (lights)
Battery volts	12

Engine Detail

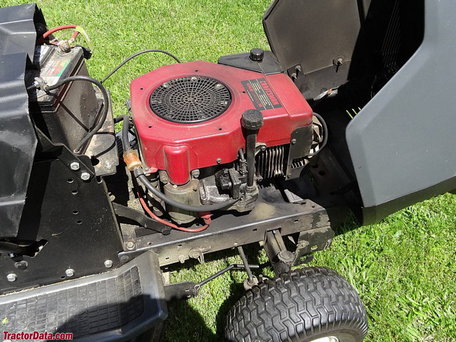

Kohler CV14S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	398 cc 24.3 ci
Bore/Stroke	3.43x2.64 inches 87 x 67 mm
Power	14 hp 10.4 kW
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm

Transmission
Transmission	Dana 4360
Type	belt-driven gear
Gears	6 forward and 1 reverse

Dimensions
Shiping weight	562 lbs 254 kg
