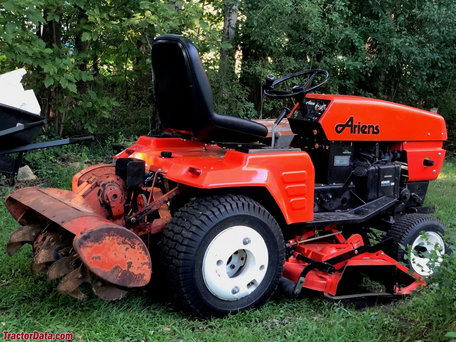

Ariens GT20 931034

Production: 1988 - 1995

Production
Manufacturer	Ariens
Type	Garden tractor
Factory	Brillion, Wisconsin, USA

Mechanical
Steering	hydraulic power
Brakes	disc
Cab	Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent
Clutch	electric
Front PTO	independent
Clutch	electric
Front RPM	3600

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	20
Battery CCA	255
Battery volts	12
Battery AH	39

Engine Detail
Kohler M20
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement	770 cc 46.98 ci
Bore/Stroke	3.125x3.06 inches 79 x 78 mm
Power (gross)	20 hp 14.9 kW
Fuel use	1.8 gal/hour 6.8 l/hour
Air cleaner	dry element with foam precleaner
Compression	6.6:1
Starter	electric
Starter volts	12
Sparkplug	RV15YS
Sparkplug gap	0.020 inches 0.508 mm

Transmission
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.5 qts 5.2 L
Oil type	SAE 5W-30

Dimensions
Wheelbase	48 inches 121 cm
Length	75 inches 190 cm
Width	43 inches 109 cm
Height (steering wheel)	47 inches 119 cm
Shiping weight	960 lbs 435 kg
