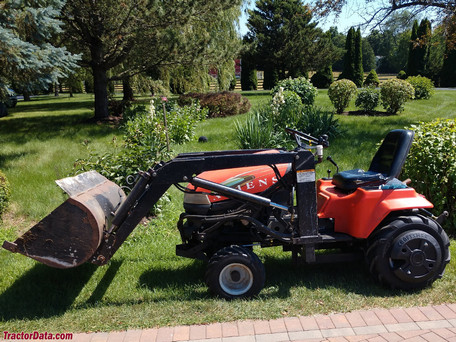

Ariens Grand Sierra 2200

Production: 1996 - 2001

Production
Manufacturer:	Ariens
Type:	Garden tractor
Factory:	Brillion, Wisconsin, USA

Variants
931038:	no attachments

Mechanical
Steering:	hydraulic power
Brakes:	disc
Cab:	Open operator station.
Transmission:	hydrostatic

Tractor hitch
Rear Type:	0*Optional

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electric
Rear RPM:	3250
Front PTO:	independent
Clutch:	electric
Front RPM:	3600

Electrical
Ground:	negative
Charging system:	flywheel alternator
Charging amps:	15

Engine Detail
Kohler CH22
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement:	674 cc 41.13 ci
Bore/Stroke:	3.15x2.64 inches 80 x 67 mm
Power (gross):	22 hp 16.4 kW
Fuel use:	1.8 gal/hour 6.8 l/hour
Air cleaner:	dry element with foam precleaner
Starter:	electric
Starter volts:	12
Sparkplug:	RC12YV
Sparkplug gap:	0.030 inches 0.762 mm

Transmission
Type:	hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	5.5 qts 5.2 L
Oil type:	SAE 5W-30

Dimensions
Wheelbase:	48 inches 121 cm
Length:	75 inches 190 cm
Width:	43 inches 109 cm
Height (steering wheel):	47 inches 119 cm
Shiping weight:	950 lbs 430 kg
