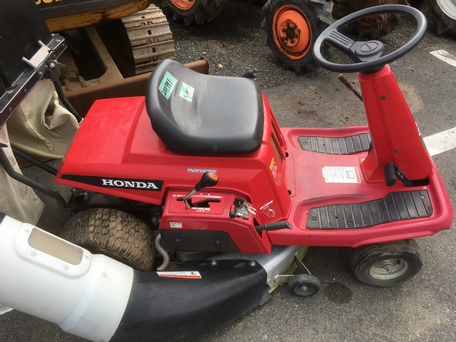

Honda H3013

Production: 1989 - 1992

PDF

• Download Honda H3013H Owner's Manual

Production
Manufacturer	Honda
Type	Riding lawn mower

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Electrical
Ground	negative
Battery volts	12

Engine Detail
Honda GXV390
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	388 cc 23.7 ci
Bore/Stroke	3.46x2.52 inches 88 x 64 mm
Power	13 hp 9.7 kW
Starter	electric
Starter volts	12
Sparkplug	NGK BPR5ES

Transmission
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	500 h

Dimensions
Wheelbase	43.3 inches 109 cm
Length	61 inches 154 cm
Height (steering wheel)	39.4 inches 100 cm
Weight	423 lbs 191 kg
