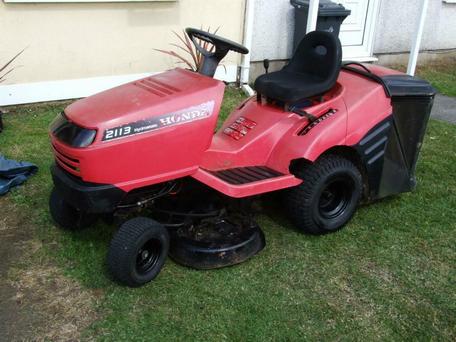

Honda H2113

Production: 1988

Production
Manufacturer	Honda
Type	Lawn tractor

Variants
H2113GDA	gear transmission
H2113HDA	hydrostatic transmission

Mechanical
Chassis	4x2 2WD

Electrical
Ground	negative
Battery CCA	170
Battery volts	12

Engine Detail
Honda GXV390
gasoline
1-cylinder
air-cooled
Displacement	388 cc 23.7 ci
Bore/Stroke	3.46x2.51 inches 88 x 64 mm
Power	13 hp 9.7 kW
Rated RPM	3600
Torque	20.3 lb-ft 27.5 Nm
Torque RPM	2500
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Intake valve clearance	0.004 inches (cold) 0.102 mm
Exhaust valve clearance	0.006 inches (cold) 0.152 mm

Transmission
Transmission	gear
Gears	5 forward and 1 reverse

Dimensions
Wheelbase	45 inches 114 cm
Length	68.2 inches 173 cm
Width	35.8 inches 90 cm
49 inches (with mower deck) 124 cm
Height	40.5 inches 102 cm
