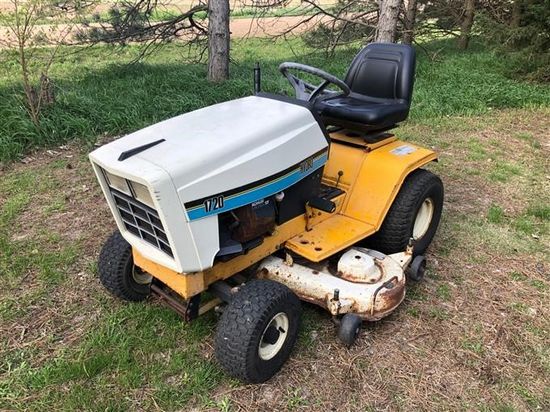

Cub Cadet 1720

Production: 1988 - 1991

Production
Manufacturer:	Cub Cadet (a part of MTD)
Type:	Lawn tractor

Variants

gear

hydrostatic

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	dry disc
Cab:	Open operator station.
Transmission:	hydrostatic

Capacity
Fuel:	3 gal 11.4 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	electric

1720 Serial Numbers
Location:	Left side of pedestal.

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	15

Engine Detail
Kohler
gasoline
2-cylinder
air-cooled
Displacement:	691 cc 42.18 ci
Bore/Stroke:	3.125x2.75 inches 79 x 70 mm
Power (gross):	17 hp 12.7 kW
Compression:	6.0:1
Idle RPM:	1350-3400
Starter:	electric
Starter volts:	12
Sparkplug:	759-334
Sparkplug gap:	0.025 inches 0.635 mm

Transmission
Type:	hydrostatic
Gears:	infinite forward and reverse

Dimensions
Wheelbase:	45 inches 114 cm
Length:	68.5 inches 173 cm
Weight:	423 lbs 191 kg
