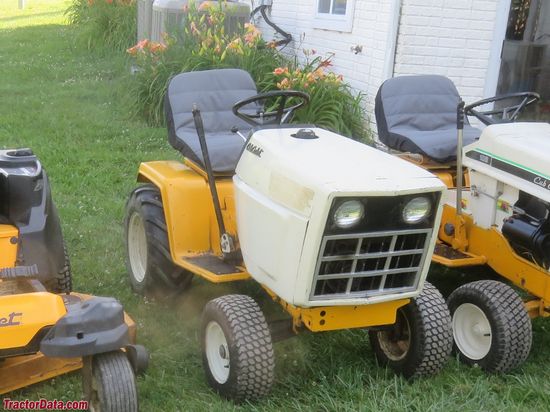

Cub Cadet 1810
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Cub Cadet (a part of MTD) |
| Type: | Garden tractor |
| Factory: | Brownsville, Tennessee, USA |
Variants | |
| gear drive | |
| hydrostatic | |
| hydro with hydraulic lift | |
| hydro with lift and remotes |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | dual disc |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 4 gal 15.1 L |
Tractor hitch | |
| Rear Type: | 0*Optional |
Power Take-off (PTO) | |
| Front PTO: | independent |
| Clutch: | electric |
1810 Serial Numbers | |
| Location: | Serial number plate on the left side of the Cub Cadet 1810, above the foot rest. |
| 1986: 747225 1987: 756300 1988: 767352 1989: 779097 | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 15 |
Engine Detail | |
| Kohler M18 | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement: | 691 cc 42.18 ci |
| Bore/Stroke: | 3.125x2.75 inches 79 x 70 mm |
| Power (gross): | 18 hp 13.4 kW |
| Idle RPM: | 1200-3600 |
| Starter: | electric |
| Starter volts: | 12 |
| Sparkplug gap: | 0.25 inches 6.350 mm |
| Intake valve clearance: | 0.004 inches 0.102 mm (cold) |
| Exhaust valve clearance: | 0.012 inches 0.305 mm (cold) |
Transmission | |
| Type: | shaft-driven hydrostatic |
| Gears: | infinite forward and reverse |
| Oil capacity: | 7 qts 6.6 L |
Dimensions | |
| Wheelbase: | 44 inches 111 cm |
| Length: | 72 inches 182 cm |
| Width: | 37.75 inches 95 cm |
| Height (steering wheel): | 43 inches 109 cm |
| Ground clearance: | 6 inches 15 cm |
| Front tread: | 29 inches 73 cm |
| Rear tread: | 27 inches 68 cm |
