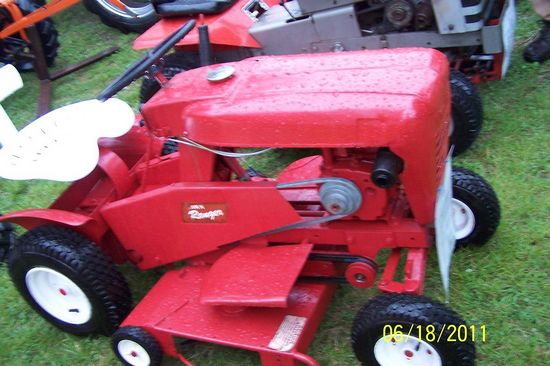

Wheel Horse Lawn Ranger

Production: 1962 - 1973

Production
Manufacturer	Wheel Horse
Type	Lawn tractor

Variants
32R	1962 recoil
32E	1962 electric
33R	1963 recoil
33E	1963 electric

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Tecumseh H55
gasoline
1-cylinder
air-cooled
Displacement	221 cc 13.53 ci
Bore/Stroke	2.625x2.5 inches 67 x 64 mm
Power	5.5 hp 4.1 kW
Starter	manual recoil
electric OptOptional
Starter volts	12

Transmission
Gears	4 forward and 1 reverse

Dimensions
Wheelbase	41.25 inches 104 cm
Length	54 inches 137 cm
Width	26.75 inches 67 cm
Height (steering wheel)	33.5 inches 85 cm
Height (hood)	28.75 inches 73 cm
Recoil Weight	339 lbs 153 kg
Electric Weight	363 lbs 164 kg
