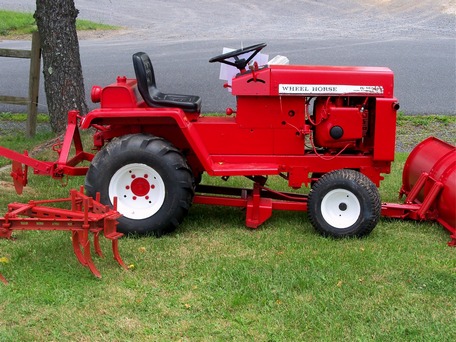

Wheel Horse D-160

Production: 1974 - 1981

D-160 Serial Location

Serial number plate on the front console below the steering wheel.

Electrical
Ground	negative
Charging amps	15
Battery volts	12

Engine Detail
Kohler K341S
gasoline
1-cylinder
air-cooled
Displacement	588 cc 35.9 ci
Bore/Stroke	3.75x3.25 inches 95 x 83 mm
Power	16 hp 11.9 kW
Rated RPM	3600
Starter volts	12

Transmission
Transmission	Sundstrand
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	6 qts 5.7 L

Dimensions
Wheelbase	50 inches 127 cm
Length	75.5 inches 191 cm
Width	45.5 inches 115 cm
Height	45.5 inches 115 cm
Weight	875 lbs 396 kg
