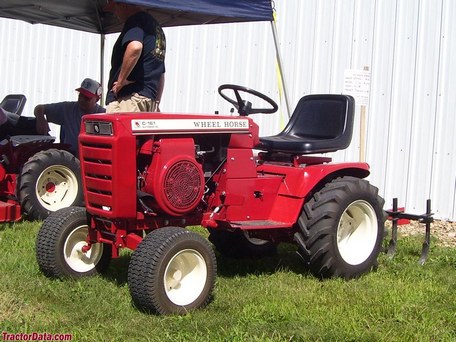

Wheel Horse C-161

Production: 1978 - 1979

Production
Manufacturer	Wheel Horse
Type	Garden tractor
Factory	South Bend, Indiana, USA

Variants
01-16KH81	UK model

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

C-161 Serial Numbers
Location:	Serial number plate below the dashboard.

Electrical
Ground	negative
Charging amps	15
Battery volts	12

Engine Detail
Kohler K341AS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement	588 cc 35.89 ci
Bore/Stroke	3.75x3.25 inches 95 x 83 mm
Power	16 hp 11.9 kW
Rated RPM	3600
Starter volts	12
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.020 inches 0.508 mm

Dimensions
Wheelbase	45.5 inches 115 cm
Length	65 inches 165 cm
Width	36 inches 91 cm
Height	41 inches 104 cm
Gear Weight	600 lbs 272 kg
Hydro Weight	640 lbs 290 kg
