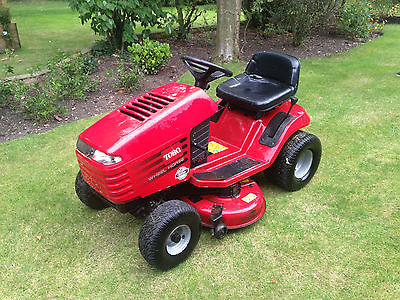

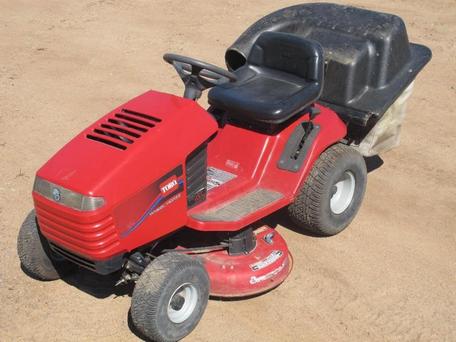

Wheel Horse 14-38HXL

Production: 1996 - 1997
Type: Lawn Tractors

Contents:

Production

Manufacturer:Wheel Horse (a part of Toro)
Type:Lawn tractor
Original price:$2,000 (1997 )

Mechanical

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:hydrostatic

Capacity

Fuel:1.75 gal 6.6 L

Power Take-off (PTO)

Mid PTO:independent
Clutch:manual

14-38HXL Serial Numbers

Location:Serial number on top of tractor fender deck, below the seat.
1996: 6900001 (71193) 1997: 7900001 (71193)

Electrical

Ground:negative

Engine Detail

Briggs & Stratton 28N707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement:465 cc 28.4 ci
Bore/Stroke:3.44x3.06 inches 87 x 78 mm
Power (gross):14.5 hp 10.8 kW
Starter:electric
Starter volts:12

Transmission

Transmission:Hydro-Gear 321-0500
Type:belt-driven hydrostatic
Gears:infinite forward and reverse

Dimensions

Wheelbase:47 inches 119 cm
Length:66.5 inches 168 cm
Height (steering wheel):40 inches 101 cm
Weight:412 lbs 186 kg
