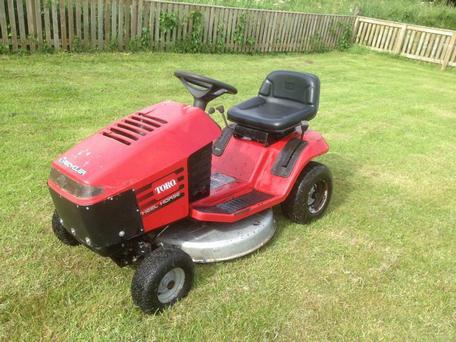

Wheel Horse 12-32XL
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer: | Wheel Horse (a part of Toro) |
| Type: | Lawn tractor |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | 5-speed gear |
Capacity | |
| Fuel: | 1.75 gal 6.6 L |
Power Take-off (PTO) | |
| Mid PTO: | independent |
| Clutch: | manual |
12-32XL Serial Numbers | |
| Location: | Serial number on top of tractor fender deck, below the seat. |
| 1996: 6900001 (71188) 1997: 7900001 (71188/71189) 1998: 8900001 (71188/71189) 1999: 9900001 (71189) 2000: 200000001 (71199) 2001: 210000001 (71199) 2002: 220000001 (71199) 2003: 230000001 (71199) 2004: 240000001 (71199) | |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Briggs & Stratton 282707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| The 282707 was used through the 1998 model year, 12-32XL tractor model number 71188. | |
| Displacement: | 465 cc 28.4 ci |
| Bore/Stroke: | 3.44x3.06 inches 87 x 78 mm |
| Power (gross): | 12 hp 8.9 kW |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Peerless MST-205 |
| Type: | belt-driven gear |
| Gears: | 5 forward and 1 reverse |
Dimensions | |
| Wheelbase: | 47 inches 119 cm |
| Length: | 66.5 inches 168 cm |
| Width: | 37.5 inches 95 cm |
| Height (steering wheel): | 40 inches 101 cm |
| Weight: | 375 lbs 170 kg |
| Front axle: | Cast-iron |
