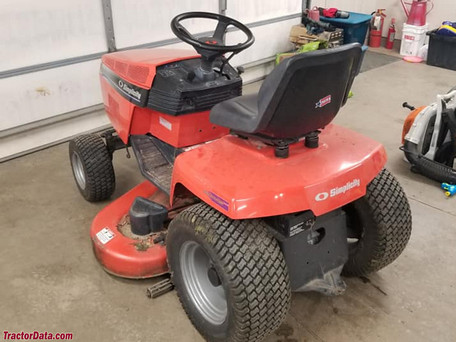

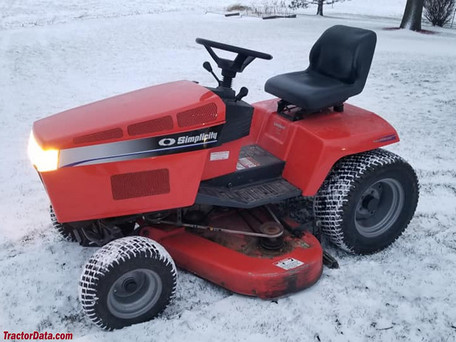

Simplicity Landlord 17
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Simplicity |
| Type | Garden tractor |
| Factory | Port Washington, Wisconsin, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | electro-magnetic |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery CCA | 380 |
| Battery volts | 12 |
Engine Detail | |
| Kawasaki FD501V | |
| gasoline | |
| 2-cylinder | |
| liquid-cooled vertical-shaft V-Twin | |
| Displacement | 437 cc 26.7 ci |
| Bore/Stroke | 2.64x2.44 inches 67 x 62 mm |
| Power (gross) | 17 hp 12.7 kW |
| Starter | electric |
| Starter volts | 12 |
| Coolant capacity | 2.2 qts 2.1 L |
Transmission | |
| Transmission | Hydro Gear 3010L |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
Dimensions | |
| Wheelbase | 51.5 inches 130 cm |
| Length | 75.25 inches 191 cm |
| Width | 39 inches 99 cm |
| Height (steering wheel) | 42.5 inches 107 cm |
| Height (hood) | 36 inches 91 cm |
| Shiping weight | 680 lbs 308 kg |
