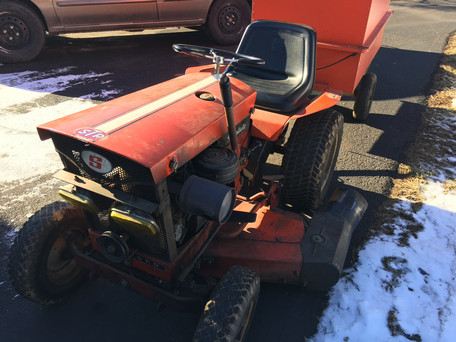

Simplicity Landlord 14 1692024
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Simplicity |
| Type | Garden tractor |
| Factory | Port Washington, Wisconsin, USA |
| The Simplicity Landlord 14 was also sold as the 14GTG. | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | electro-magnetic |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery CCA | 340 |
| Battery volts | 12 |
Engine Detail | |
| Kohler | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 398 cc 24.3 ci |
| Bore/Stroke | 3.43x2.64 inches 87 x 67 mm |
| Power (gross) | 14 hp 10.4 kW |
| Starter | electric |
| Starter volts | 12 |
Transmission | |
| Transmission | Tuff Torq K210-A |
| Type | belt-driven gear |
| Gears | 6 forward and 1 reverse |
| Oil capacity | 3.875 qts 3.7 L |
Dimensions | |
| Wheelbase | 51.5 inches 130 cm |
| Length | 72 inches 182 cm |
| Width | 39 inches 99 cm |
| Height (steering wheel) | 42.5 inches 107 cm |
| Height (hood) | 36 inches 91 cm |
| Shipping weight | 670 lbs 303 kg |
