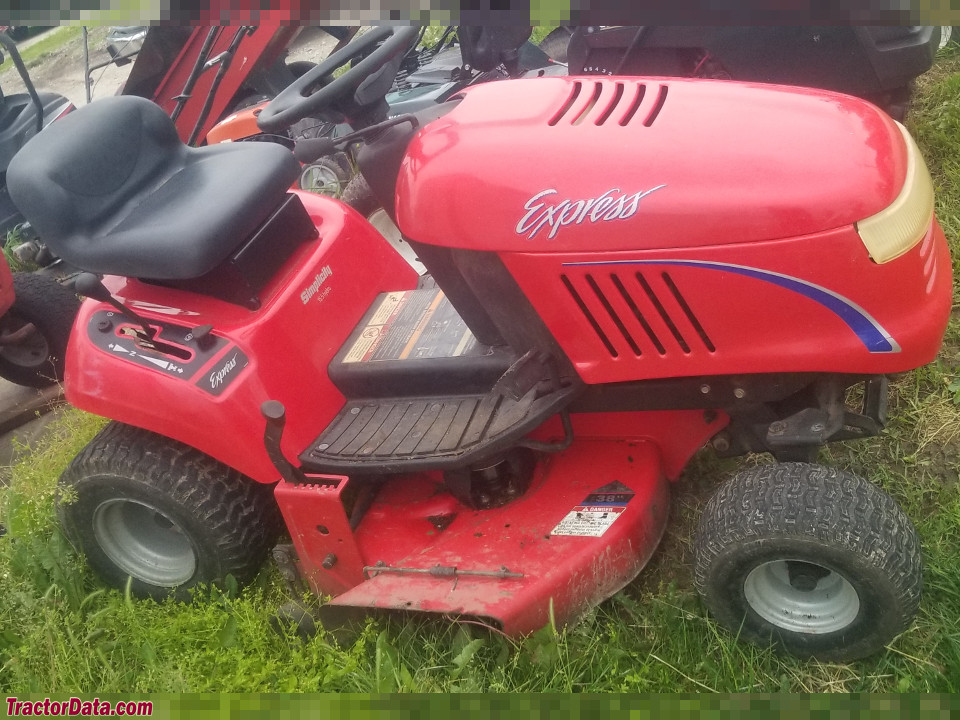

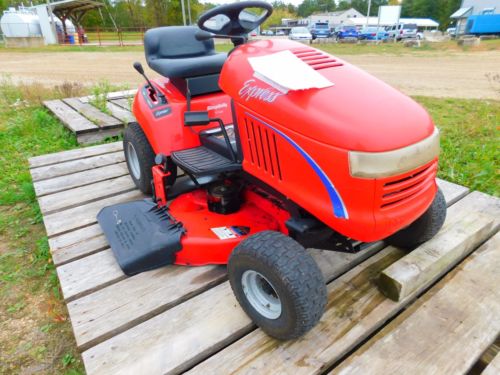

Simplicity Express 15.5H

Production: 1999 - 2003

Contents:

Express 15.5H Serial Location

Left-front of tractor frame, near front axle.

Electrical

Groundnegative
Battery volts12

Engine Detail

Briggs & Stratton Intek
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement465 cc 28.4 ci
Bore/Stroke3.44x3.06 inches 87 x 78 mm
Power (gross)15.5 hp 11.6 kW
Rated RPM3600
Starterelectric
Starter volts12
Oil capacity1.5 qts 1.4 L

Transmission

TransmissionTuff Torq K51
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity2.5 qts 2.4 L
Oil typeSAE 10W-30 SG/CD

Dimensions

Length68 inches 172 cm
Width36 inches 91 cm
Height (steering wheel)41 inches 104 cm
Height (hood)34 inches 86 cm
Weight455 lbs 206 kg
