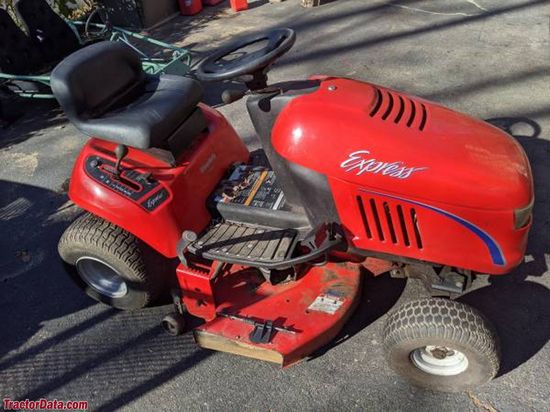

Simplicity Express 14.5G

Production: 1999 - 2003

Production
Manufacturer	Simplicity
Type	Lawn tractor
Original price	$1,699 (2000 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Express 14.5G Serial Numbers
Location:	Left-front of tractor frame, near front axle.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Briggs & Stratton Intek
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	14.5 hp 10.8 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission
Transmission	Peerless MST 205
Type	belt-driven gear
Gears	5 forward and 1 reverse
Oil change	sealed unit, owner service is not recommended

Dimensions
Length	68 inches 172 cm
Width	36 inches 91 cm
Height (steering wheel)	41 inches 104 cm
Height (hood)	34 inches 86 cm
Weight	455 lbs 206 kg
