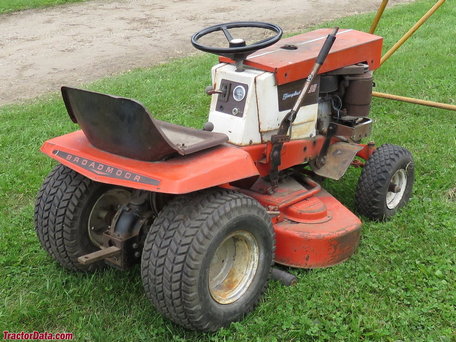

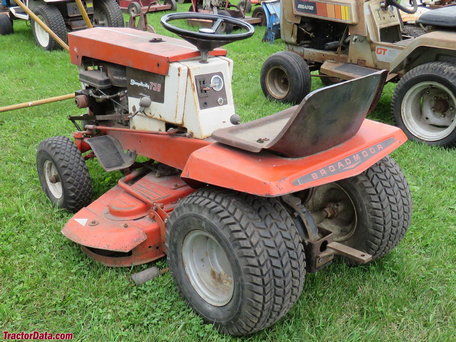

Simplicity Broadmoor 738

Production: 1973 - 1974

Production
Manufacturer:	Simplicity
Type:	Garden tractor
The model Broadmoor 738 carried Simplicity model number 990898.

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	external band
Cab:	Open operator station.
Transmission:	3-speed gear

Capacity
Fuel:	1 gal 3.8 L

Broadmoor 738 Serial Numbers
Location:	Serial number tag on the right side of the Simplicity 738 tractor frame.

Electrical
Ground:	negative

Engine Detail
Briggs & Stratton 191701
gasoline
1-cylinder
air-cooled
Displacement:	318 cc 19.44 ci
Bore/Stroke:	3.00x2.75 inches 76 x 70 mm
Power (gross):	8 hp 6.0 kW
Air cleaner:	foam element
Rated RPM:	3600
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	3 forward and 1 reverse
Oil capacity:	1 qts 0.9 L

Dimensions
Wheelbase:	41.5 inches 105 cm
Length:	58.25 inches 147 cm
Width:	31 inches 78 cm
Height (steering wheel):	33.6 inches 85 cm
Height (hood):	30.5 inches 77 cm
Shipping:	336 lbs 152 kg
423 lbs 191 kg (with mower)
