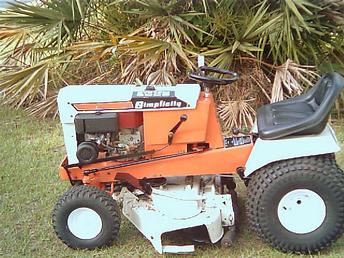

Simplicity Broadmoor 5008 1690008

Production: 1974 - 1976

Production
Manufacturer	Simplicity
Type	Garden tractor
The 5008 Broadmoor carried Simplicity model number 1690008.

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	external band
Cab	Open operator station.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Briggs & Stratton
gasoline
1-cylinder
air-cooled
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Air cleaner	foam element
Rated RPM	3600
Idle RPM	1400-3600
Starter volts	12

Transmission
Type	gear
Gears	3 forward and 1 reverse
Oil capacity	1 qts 0.9 L

Dimensions
Wheelbase	42.65 inches 108 cm
Length	59 inches 149 cm
Width	31.5 inches 80 cm
Height (steering wheel)	33.6 inches 85 cm
Height (hood)	30.5 inches 77 cm
Shiping weight	336 lbs 152 kg
423 lbs (with mower) 191 kg
