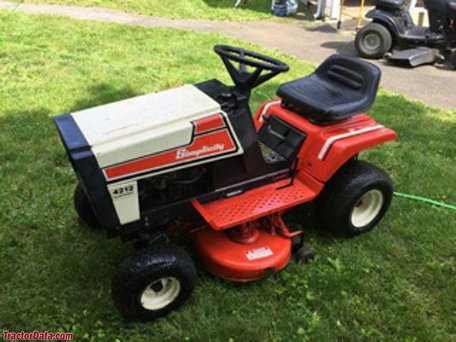

Simplicity 4212H
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer: | Simplicity |
| Type: | Lawn tractor |
| Factory: | Port Washington, Wisconsin, USA |
Variants | |
| gear | |
| hydrostatic |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 2.2 gal 8.3 L |
Electrical | |
| Ground: | negative |
| Charging amps: | 3 |
Engine Detail | |
| Briggs & Stratton | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement: | 465 cc 28.4 ci |
| Bore/Stroke: | 3.44x3.06 inches 87 x 78 mm |
| Power (gross): | 12 hp 8.9 kW |
| Rated RPM: | 3600 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | belt-driven hydrostatic |
| Gears: | infinite forward and reverse |
Dimensions | |
| Wheelbase: | 45.5 inches 115 cm |
| Length: | 65.25 inches 165 cm |
| Width: | 34.25 inches 86 cm |
| Height (steering wheel): | 39.7 inches 100 cm |
| Weight: | 445 lbs 201 kg *Weight with mower deck. |
| Clearance (front axle): | 9 inches 22 cm |
| Clearance (rear axle): | 4.75 inches 12 cm |
