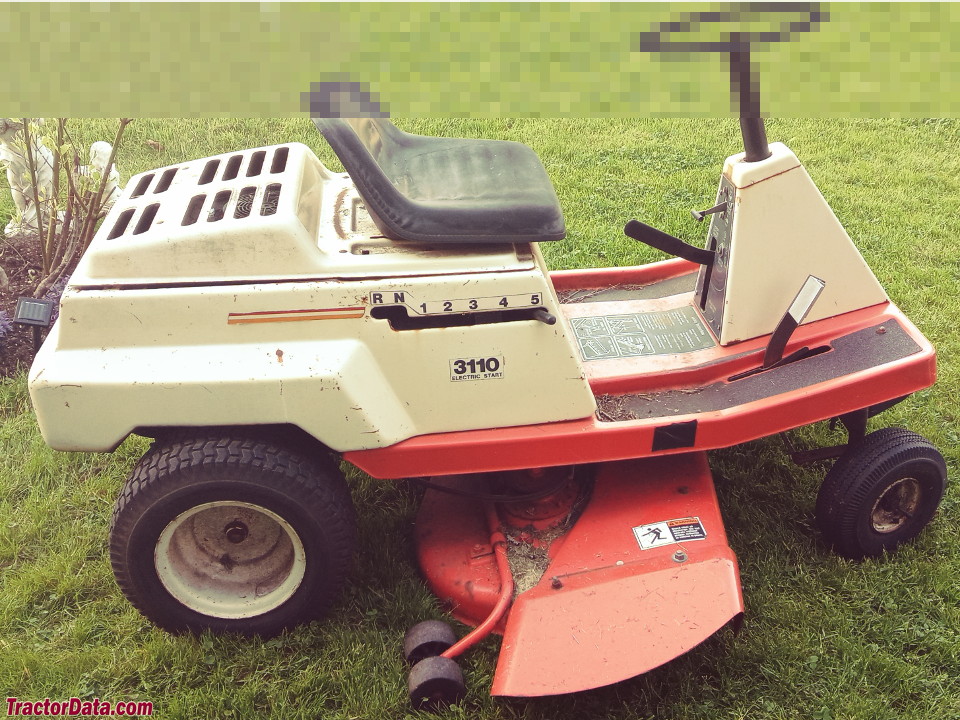

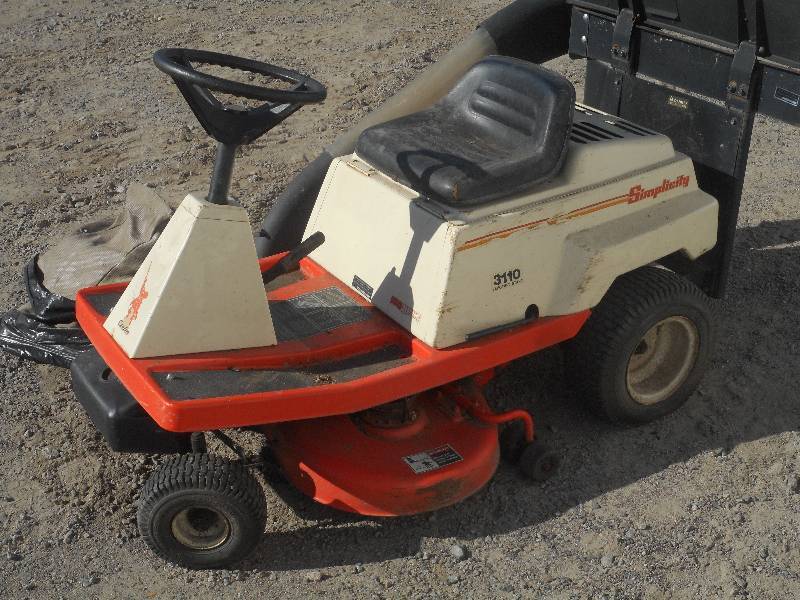

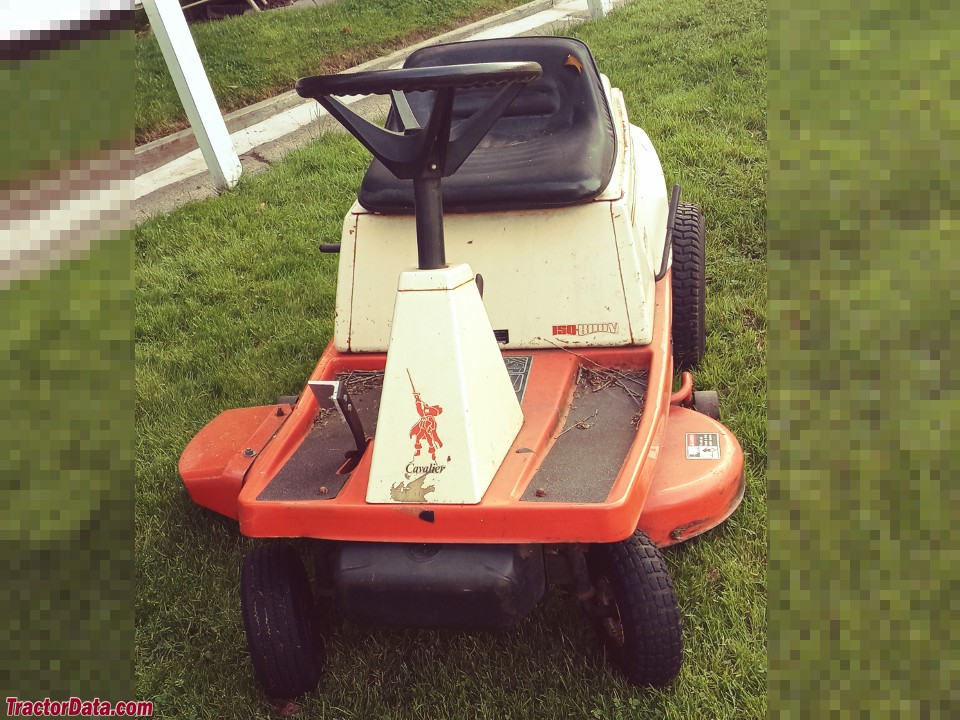

Simplicity 3110
Contents:
3110 Serial Location | |
| Serial number decal to the front of, and below, the seat. |
Electrical | |
| Ground | negative |
| Charging amps | 3 |
| Battery volts | 12 |
Engine Detail | |
| Briggs & Stratton | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 361 cc 22.04 ci |
| Bore/Stroke | 3.44x2.38 inches 87 x 60 mm |
| Power (gross) | 10 hp 7.5 kW |
| Air cleaner | oiled foam |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |
Transmission | |
| Transmission | Tecumseh 740 |
| Type | belt-driven gear |
| Gears | 5 forward and 1 reverse |
Dimensions | |
| Weight | 370 lbs 167 kg |
