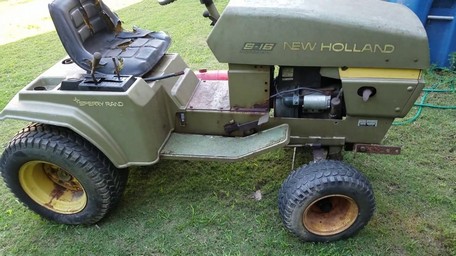

New Holland S-16
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | New Holland (a part of Sperry) |
| Type | Garden tractor |
| Factory | Belleville, Pennsylvania, USA |
| Original price | $2,055 (1973 ) |
Mechanical | |
| Steering | manual |
| Brakes | parking prawl |
| Cab | Open operator station. Vinyl weather cab optional. |
Tractor hitch | |
| Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
| Rear PTO | Optional |
| Rear RPM | 3600 |
| Front PTO | independent |
| Clutch | electric |
S-16 Serial Numbers | |
| Location: | Serial number plate on the front right of the tractor frame, above the front axle. |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery volts | 12 |
| Battery AH | 35 |
Engine Detail | |
| Kohler K341S | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 588 cc 35.9 ci |
| Bore/Stroke | 3.75x3.25 inches 95 x 83 mm |
| Power (gross) | 16 hp 11.9 kW |
| Air cleaner | dry element |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.009 inches*Cold. 0.229 mm |
| Exhaust valve clearance | 0.018 inches*Cold. 0.457 mm |
Transmission | |
| Transmission | Vickers T66Z |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 3.5 qts 3.3 L |
| Oil type | SAE 10W-30 MS |
Dimensions | |
| Wheelbase | 48 inches 121 cm |
| Length | 72 inches 182 cm |
| Width | 38.5 inches*Minimum 97 cm |
| Height (steering wheel) | 47.75 inches 121 cm |
| Shipping weight | 785 lbs 356 kg |
| Front tread | 31.375 inches 79 cm |
| Rear tread | 32.375/35.25 inches 82/89 cm |
