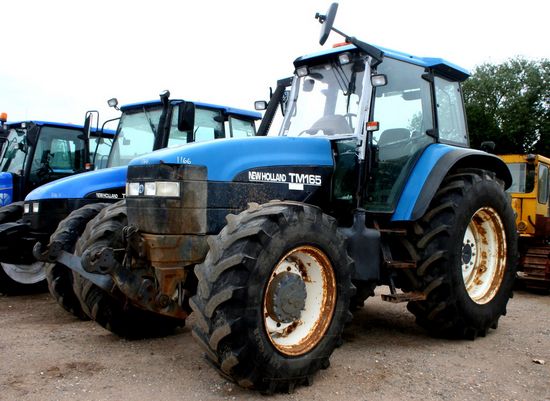

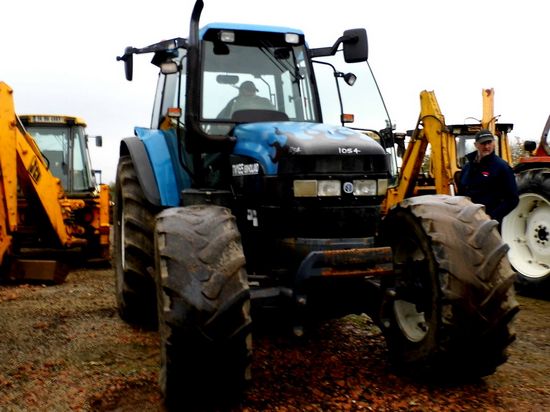

New Holland TM165
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | New Holland |
| Type: | Row-Crop tractor |
| Factory: | Basildon, England |
New Holland TM165 Power | |
| Engine: | 165 hp 123.0 kW |
| PTO (claimed): | 135 hp 100.7 kW |
| Drawbar (tested): | 125.0 hp 93.2 kW |
| PTO (tested): | 148.3 hp 110.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard. |
| Transmissions: | 18-speed power shift |
| 18-speed full power shift | |
Capacity | |
| Fuel: | 85 gal 321.7 L |
| Hydraulic system: | 26.5 gal 100.3 L |
Hydraulics | |
| Type: | closed-center load sensing (CCLS) |
| Capacity: | 26.5 gal 100.3 L |
| Pressure: | 2750 psi 189.6 bar |
| Rear valves: | 4 (max) |
| Mid valves: | 4 (max) |
| Pump flow: | 28 gpm 106.0 lpm |
| Steering flow: | 16.4 gpm 62.1 lpm |
Tractor hitch | |
| Rear Type: | III/II |
| Control: | electronic lower-link draft sensing |
| Rear lift: | 11690 lbs 5302 kg |
| Front Hitch: | II |
| Front lift: | 7208 lbs 3269 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/1000 |
| 540/540E/1000*Optional. Only available in select markets. | |
| Engine RPM: | 540@1970 540E@1546 1000@2120 |
TM165 Serial Numbers | |
| 2000: | 13443B |
| 2001: | 155247B |
| 2002: | 173895B |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| Batteries: | 2 |
| Battery CCA: | 900 |
| Battery volts: | 12 |
Engine Detail | |
| New Holland | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 456 ci 7.5 L |
| Bore/Stroke: | 4.40x5.00 inches 112 x 127 mm |
| Power: | 165 hp 123.0 kW |
| Air cleaner: | dual dry element |
| Compression: | 17.5:1 |
| Rated RPM: | 2300 |
| Operating RPM: | 1500-2200 |
| Firing order: | 1-5-3-6-2-4 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 27.5 qts 26.0 L |
Dimensions | |
| 2WD Wheelbase: | 108.1 inches 274 cm |
| 4WD Wheelbase: | 107.2 inches 272 cm |
| SuperSteer Wheelbase: | 113.4 inches 288 cm |
| Terraglide Wheelbase: | 109.6 inches 278 cm |
| 2WD Length: | 180.5 inches 458 cm |
| 4WD Length: | 185.7 inches 471 cm |
| Terraglide Length: | 188.1 inches 477 cm |
| SuperSteer Length: | 191.9 inches 487 cm |
| Width: | 79.2 inches 201 cm |
| Clearance (front axle): | 16.2 inches 41 cm |
| Clearance (drawbar): | 10.2 inches 25 cm |
| Front axle: | 2WD |
| Front axle: | 4WD |
| Front axle: | SuperSteer 4WD |
| Front axle: | TerraGlide 4WD inch diameter 0 mm |
| Rear axle: | Flange |
| Rear axle: | Bar: 98 inch length 2489 mm |
| Rear axle: | Bar: 112 inch length 2844 mm |
| 2WD Front tread: | 60.8 to 86.1 inches 154 to 218 cm |
| 4WD Front tread: | 61.1 to 89.3 inches 155 to 226 cm |
| Rear tread: | 60.2 to 87.9 inches 152 to 223 cm |
| Rear tread: | 59.9 to 90.6 inches 152 to 230 cm (PAVT) |
| Rear tread: | 60.9 to 100.5 inches 154 to 255 cm (bar axle) |
| Rear tread: | 60.9 to 114.5 inches 154 to 290 cm (long bar) |
