Bolens 3214G ST140
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Bolens |
| Type: | Garden tractor |
| Factory: | Port Washington, Wisconsin, USA |
Variants | |
| gear | |
| hydrostatic |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | 5-speed gear |
Capacity | |
| Fuel: | 5 gal 18.9 L |
Power Take-off (PTO) | |
| Mid PTO: | independent |
| Clutch: | electric |
3214G Serial Numbers | |

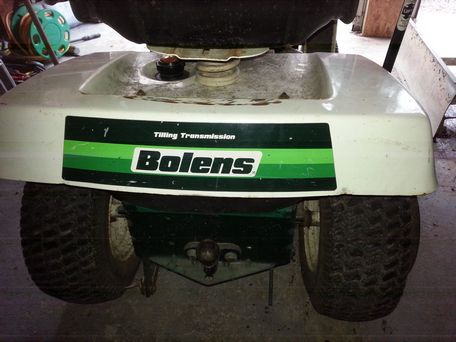

| Location: | Serial number tag on the rear fender, under the tractor seat, on the left side. |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Briggs & Stratton 294777 | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft horizontally-opposed | |
| Displacement: | 480 cc 29.3 ci |
| Bore/Stroke: | 2.68x2.60 inches 68 x 66 mm |
| Power: | 14 hp 10.4 kW |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 1.75 qts 1.7 L |
Transmission | |
| Transmission: | Peerless 801 |
| Type: | belt-driven gear |
| Gears: | 5 forward and 1 reverse |
Dimensions | |
| Wheelbase: | 45 inches 114 cm |
| Length: | 69 inches 175 cm |
| Width: | 34.5 inches 87 cm |
| Height: | 42.5 inches 107 cm |
