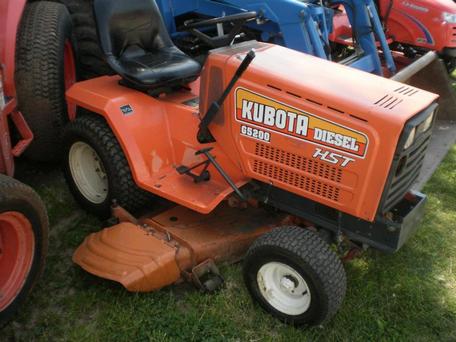

Kubota G5200
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Kubota |
| Type | Garden tractor |
Mechanical | |
| Chassis | 4x2 2WD |
| Brakes | disc |
| Cab | Open operator station. |
Tractor hitch | |
| Rear Type | 0 OptOptional |
G5200 Serial Numbers | |
| Location: | Serial number on the left side of tractor frame, above front axle. |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 35 |
Engine Detail | |
| Kubota D600 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 599 cc 36.6 ci |
| Bore/Stroke | 2.52x2.45 inches 64 x 62 mm |
| Power (gross) | 14 hp 10.4 kW |
| Pre-heating | glow plugs |
| Rated RPM | 3200 |
| Starter volts | 12 |
| Starter power | 0.94 hp 0.7 kW |
| Coolant capacity | 2.2 qts 2.1 L |
Transmission | |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 7.5 qts 7.1 L |
Dimensions | |
| Wheelbase | 47.2 inches 119 cm |
| Length | 70.9 inches 180 cm |
| Width | 37.8 inches (min) 96 cm |
| 40.2 inches (max) 102 cm | |
| Height | 45.3 inches 115 cm |
| Ground clearance | 6.7 inches 17 cm |
| Front tread | 29.1 inches 73 cm |
| Rear tread | 27.4/29.7 inches 69/75 cm |
