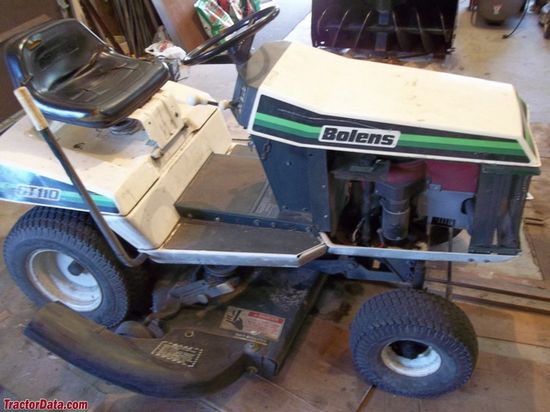

Bolens 3011G ST110
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Bolens |
| Type | Garden tractor |
| Factory | Port Washington, Wisconsin, USA |
Variants | |
| gear | |
| hydrostatic | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | disc |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
3011G Serial Numbers | |
| Location: | Serial number tag on the rear fender, under the tractor seat, on the left side. |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 45 |
Engine Detail | |
| Briggs & Stratton 253707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 399 cc 24.36 ci |
| Bore/Stroke | 3.43x2.64 inches 87 x 67 mm |
| Power | 11 hp 8.2 kW |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |
Transmission | |
| Transmission | Peerless 801 |
| Type | belt-driven gear |
| Gears | 5 forward and 1 reverse |
Dimensions | |
| Wheelbase | 45 inches 114 cm |
| Length | 69 inches 175 cm |
| Width | 34.5 inches 87 cm |
| Height | 42.5 inches 107 cm |
