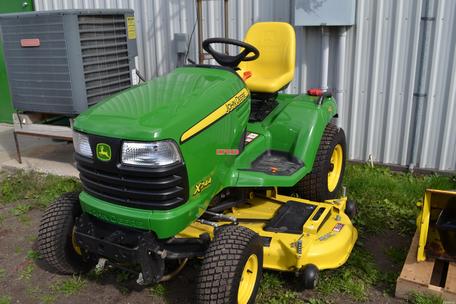

John Deere X744
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Garden tractor |
| Factory | Horicon, Wisconsin, USA |
| Original price | $10,899 (2011 ) |
Variants | |
| two-wheel drive | |
| 2WD, all-wheel steer | |
| four-wheel drive | |
| 4WD, all-wheel steer | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | four-wheel hydrostatic power |
| Brakes | wet disc |
| Cab | Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab. |
Hydraulics | |
| Pressure | 924 psi 63.7 bar |
| Valves | 2 |
| Total flow | 4.5 gpm 17.0 lpm |
Tractor hitch | |
| Rear Type | 0 OptOptional |
| 1-Limited OptOptional | |
Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear RPM | 540 |
| Mid PTO | independent |
| Mid RPM | 2000 |
| Front PTO | optional |
| Front RPM | 2000 |
X744 Serial Numbers | |
| 2006 | 010001 |
| 2007 | 020001 |
| 2008 | 030001 |
| 2009 | 040001 |
| 2010 | 050001 |
| 2011 | 060001 |
X744 Serial Location | |
| Serial number tag on the center-right of the John Deere X744 tractor frame, just behind the hydraulic couplers. |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 40 |
| Battery CCA | 500 |
| Battery volts | 12 |
Engine Detail | |
| Yanmar 3TNV76 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled OHV | |
| Original engine. The 3TNV76 was used from 2006 through the 2010 model year. | |
| Displacement | 1116 cc 68.1 ci |
| Power (gross) | 24 hp 17.9 kW |
| Fuel system | indirect injection |
| Air cleaner | paper element |
| Compression | 23.4:1 |
| Idle RPM | 1450-3425 |
| Starter volts | 12 |
| Starter power | 1.6 hp 1.2 kW |
| Oil capacity | 2.75 qts 2.6 L |
| Coolant capacity | 3 qts 2.8 L |
Transmission | |
| Transmission | Tuff Torq K92 |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 6 qts 5.7 L |
| Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard. | |
Dimensions | |
| Wheelbase | 54.5 inches 138 cm |
| Length | 78.8 inches 200 cm |
| Width | 46.8 inches 118 cm |
| Height | 50 inches 127 cm |
| Weight | 1060 lbs*Weight of tractor only. 480 kg |
