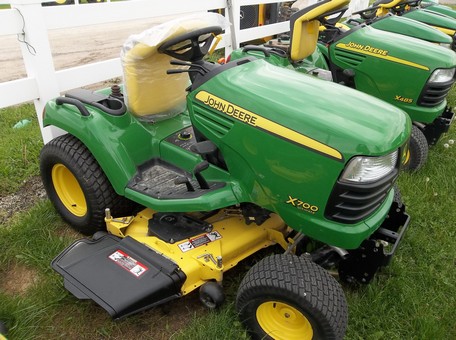

John Deere X700
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Garden tractor |
| Factory | Horicon, Wisconsin, USA |
| Original price | $8,299 (2011 ) |
Mechanical | |
| Chassis | 4x2 2WD |
| Differential lock | foot-activated standard |
| Steering | hydrostatic power |
| Brakes | wet disc |
| Cab | Open operator station featuring 15-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab. |
Hydraulics | |
| Pressure | 924 psi 63.7 bar |
| Valves | 2 OptOptional |
| Total flow | 4.5 gpm 17.0 lpm |
Tractor hitch | |
| Rear Type | 0 OptOptional |
| 1-Limited OptOptional | |
Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear RPM | 540 |
| Mid PTO | independent |
| Mid RPM | 2000 |
| Front PTO | optional |
| Front RPM | 2000 |
X700 Serial Numbers | |
| 2006 | 010001 |
| 2007 | 020001 |
| 2008 | 030001 |
| 2009 | 040001 |
| 2010 | 050001 |
| 2011 | 060001 |
| 2012 | 070001 |
X700 Serial Location | |
| On the center-right of main tractor frame, just behind hydraulic couplers. |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| 40 (optional) | |
| Battery CCA | 340 |
| Battery volts | 12 |
Engine Detail | |
| Kawasaki FD671D | |
| gasoline | |
| 2-cylinder | |
| liquid-cooled V-twin | |
| Displacement | 745 cc 45.5 ci |
| Bore/Stroke | 3.07x3.07 inches 78 x 78 mm |
| Power (gross) | 23 hp 17.2 kW |
| Fuel system | carburetor |
| Air cleaner | paper element |
| Compression | 8.0:1 |
| Idle RPM | 1600-3550 |
| Starter volts | 12 |
| Starter power | 1.1 hp 0.8 kW |
| Oil capacity | 1.9 qts 1.8 L |
| Coolant capacity | 4.2 qts 4.0 L |
Transmission | |
| Transmission | Tuff Torq K92 |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 7 qts 6.6 L |
| Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard. | |
Dimensions | |
| Wheelbase | 54.5 inches 138 cm |
| Length | 78.8 inches 200 cm |
| Width | 46.8 inches 118 cm |
| Height | 47 inches 119 cm |
| Weight | 840 lbs*Weight of tractor only. 381 kg |
