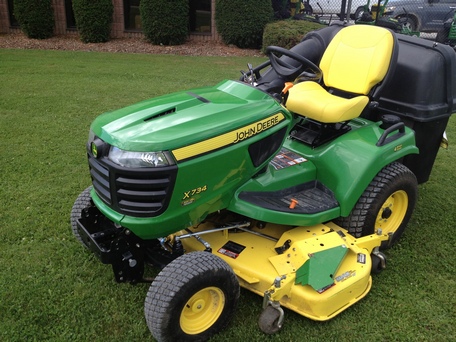

John Deere X734
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Garden tractor |
| Factory | Horicon, Wisconsin, USA |
| Original price | $10,299 (2013 ) |
| Original price | $10,449 (2018 ) |
| Original price | $10,849 (2019 ) |
Variants | |
| 4WD 4-wheel steer | |
| 4WD 2-wheel steer | |
| 2WD 4-wheel steer | |
| 2WD 2-wheel steer | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | hydrostatic power four-wheel steering |
| Brakes | internal wet disc |
| Cab | Open operator station with tilt-back seat. Optional hard cab. |
Tractor hitch | |
| Rear Type | 0 (optional) |
| 1-limited (optional) | |
Power Take-off (PTO) | |
| Rear PTO | independent (optional) |
| Rear RPM | 540 |
| Front PTO | independent |
| Clutch | electro-hydraulic |
X734 Serial Numbers | |
| 2013 | M010001 |
| 2014 | M020001 |
| 2015 | M030001 |
| 2016 | M040001 |
| 2017 | M050001 |
| 2018 | M060001 |
| 2019 | M070001 |
| 2020 | M080001 |
| 2021 | M090001 |
X734 Serial Location | |
| Serial number plate on the right side of the tractor frame, below the footrest. |
Electrical | |
| Ground | negative |
| Charging system | regulated |
| Charging amps | 20 |
| Battery volts | 12 |
Engine Detail | |
| Kawasaki FD750D | |
| gasoline | |
| 2-cylinder | |
| liquid-cooled horizontal-shaft V-Twin | |
| Displacement | 745 cc 45.5 ci |
| Bore/Stroke | 3.07x3.07 inches 78 x 78 mm |
| Power (gross) | 25.5 hp 19.0 kW |
| Fuel system | electronic fuel injection (EFI) |
| Starter | electric |
| Starter volts | 12 |
Transmission | |
| Transmission | Tuff Torq K90 |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
Dimensions | |
| Wheelbase | 54.5 inches 138 cm |
| Length | 75 inches 190 cm |
| Seat Height | 51.2 inches 130 cm |
| Weight | 918 lbs*Weight of tractor only. 416 kg |
