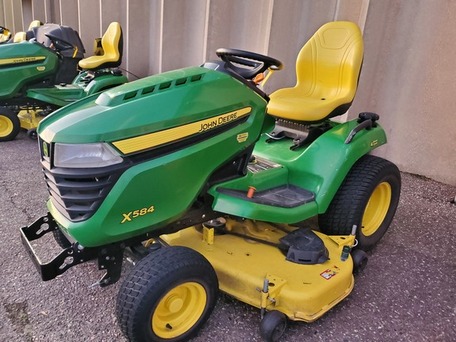

John Deere X584
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Garden tractor |
| Factory: | Horicon, Wisconsin, USA |
| Original price: | $6,669 (2017 ) |
Mechanical | |
| Chassis: | 4x2 2WD |
| Differential lock: | mechanical rear |
| Steering: | power four-wheel |
| Brakes: | wet disc |
| Cab: | Open operator station. Canopy and weather cab optional. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 4.4 gal 16.7 L |
Tractor hitch | |
| Type: | sleeve hitch*Optional |
Power Take-off (PTO) | |
| Mid PTO: | independent |
| Clutch: | electric |
X584 Serial Numbers | |
| Location: | Serial number on the right side of the tractor frame, above the front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | flywheel alternator |
| Charging amps: | 15 |
Engine Detail | |
| Kawasaki FS730V | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Displacement: | 726 cc 44.3 ci |
| Bore/Stroke: | 3.07x2.99 inches 78 x 76 mm |
| Power (gross): | 24 hp 17.9 kW |
| Fuel system: | carburetor |
| Air cleaner: | dry with foam precleaner |
| Starter volts: | 12 |
Transmission | ||
| Transmission: | Kanzaki K72 | |
| Type: | belt-driven hydrostatic | |
| Gears: | infinite forward and reverse | |
| Oil capacity: | 5.6 qts 5.3 L | |
| Oil type: | 86oF [30oC]↓ | : JD LV Hy-Gard |
| -10oF [-23oC]↑ | : JD Hy-Gard | |
Dimensions | |
| Wheelbase: | 51.2 inches 130 cm in. 130 cm |
| Length: | 79 inches 200 cm |
| Width: | 41 inches 104 cm |
| Height: | 52.25 inches 132 cm |
| Weight: | 694 lbs 314 kg |
| Front axle: | Cast-iron |
