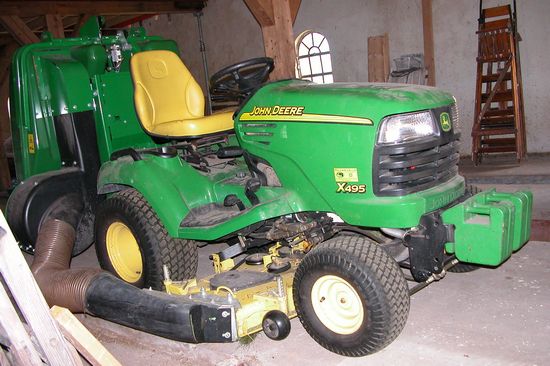

John Deere X495
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Garden tractor |
| Factory | Horicon, Wisconsin, USA |
| Original price | $11,199 (2002 ) |
Variants | |
| 2WD two-wheel steer | |
| all-wheel steer | |
| 4WD | |
Mechanical | |
| Chassis | 4x2 2WD |
| Differential lock | mechanical rear |
| Steering | hydrostatic power |
| four-wheel steering on AWS | |
| Brakes | integral wet disc |
| Cab | Open operator station. Optional hard and soft-sided cabs. Optional vinyl weather enclosure. |
Tractor hitch | |
| Rear Type | 0 OptOptional |
| 1-limited OptOptional | |
| Rear lift | 450 lbs 204 kg |
Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear RPM | 540 |
| Mid PTO | independent |
| Clutch | electric |
X495 Serial Numbers | |
| 2002 | 010001 |
| 2003 | 020001 |
| 2004 | 030001 |
| 2005 | 040001 |
X495 Serial Location | |
| Serial number decal on the middle-right of the main tractor frame. |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery CCA | 500 |
| Battery volts | 12 |
Engine Detail | |
| Yanmar 3TNE74 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled horizontal-shaft inline | |
| The Yanmar 3TNE74 diesel engine was used in the John Deere X495 until 2005. | |
| Displacement | 1006 cc 61.4 ci |
| Bore/Stroke | 2.9x2.9 inches 74 x 74 mm |
| Power | 24 hp 17.9 kW |
| Fuel system | mechanical indirect injection |
| Air cleaner | dual paper element |
| Compression | 23.0:1 |
| Rated RPM | 3475 |
| Starter volts | 12 |
| Starter power | 1.07 hp 0.8 kW |
| Oil capacity | 3 qts 2.8 L |
| Coolant capacity | 3 qts 2.8 L |
Transmission | |
| Transmission | Tuff Torq K92 |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 7 qts 6.6 L |
| 6 qts (X495 AWS) 5.7 L | |
| Oil type | Low-viscosity HY-GARD |
Dimensions | |
| Wheelbase | 54.5 inches 138 cm |
| Length | 78.8 inches 200 cm |
| Width | 46.8 inches 118 cm |
| Height | 50 inches 127 cm |
| 2WS Weight | 1000 lbs 453 kg |
| AWS Weight | 1060 lbs 480 kg |
