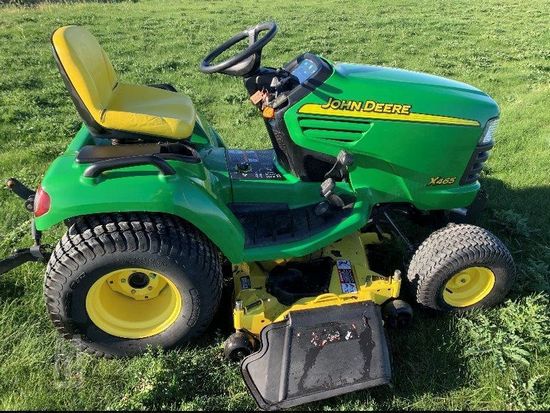

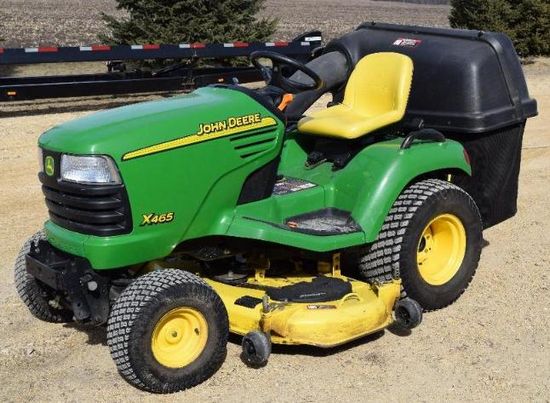

John Deere X465

Production: 2002 - 2005

Production
Manufacturer	John Deere
Type	Garden tractor
Factory	Horicon, Wisconsin, USA
Original price	$7,470 (2004 2WD )
Original price	$7,870 (2004 AWS )

Variants
X465AWS	all-wheel steer

Mechanical
Chassis	4x2 2WD
Differential lock	mechanical rear
Steering	hydrostatic power
four-wheel steering on X465 AWS
Brakes	integral wet disc
Cab	Open operator station. Optional hard and soft-sided cabs. Optional vinyl weather enclosure.

Tractor hitch
Rear Type	0 OptOptional
1-limited OptOptional
Rear lift	450 lbs 204 kg

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear RPM	540
Mid PTO	independent
Clutch	electric

X465 Serial Numbers
2002	010001
2003	020001
2004	030001

X465 Serial Location

Serial number decal on the middle-right of the main tractor frame.

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
Battery CCA	340
Battery volts	12

Engine Detail
Kawasaki FH641D
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement	686 cc 41.9 ci
Bore/Stroke	2.99x2.99 inches 76 x 76 mm
Power	21 hp 15.7 kW
Fuel system	carburetor
Air cleaner	dual paper element
Compression	8.0:1
Rated RPM	3550
Starter volts	12
Starter power	1.07 hp 0.8 kW
Oil capacity	1.8 qts 1.7 L
Oil change	50 h

Transmission
Transmission	Tuff Torq K92
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L
6 qts (X465 AWS) 5.7 L
Oil type	Low-viscosity HY-GARD

Dimensions
Wheelbase	54.5 inches 138 cm
Length	75 inches 190 cm
Width	44.8 inches 113 cm
Height	45.9 inches 116 cm
2WD Weight	830 lbs 376 kg
AWS Weight	885 lbs 401 kg
