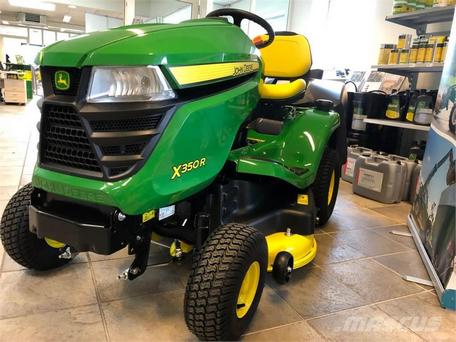

John Deere X350R
Type: Rear-discharge Mowers
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Rear-discharge mower |
Variants | |
| 2-wheel steering | |
| 4-wheel steering | |
| rear-discharge | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | wet disc |
| Cab | Open operator station with 15-inch seat. |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
X350R Serial Numbers | |
| Location: | Serial number tag on the right side of the tractor frame, above the front axle. |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery CCA | 340 |
| Battery volts | 12 |
Engine Detail | |
| Kawasaki FS600V | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Displacement | 603 cc 36.8 ci |
| Bore/Stroke | 2.87x2.84 inches 73 x 72 mm |
| Power (gross) | 18.5 hp 13.8 kW |
| Fuel system | carburetor |
| Air cleaner | dry with foam precleaner |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
Transmission | |
| Transmission | Tuff Torq K46 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil change | sealed unit, owner service is not recommended |
Dimensions | |
| Wheelbase | 50.2 inches 127 cm |
| Length | 72 inches 182 cm |
| Width | 38 inches 96 cm |
| Height | 47 inches 119 cm |
| Front axle | Cast-iron |
