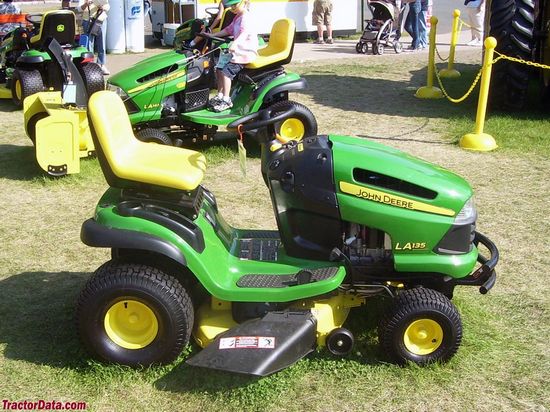

John Deere LA135
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Lawn tractor |
| Factory | Greeneville, Tennessee, USA |
| Original price | $1,899 (2010 ) |
| The John Deere LA135 was labeled as "special edition" or "limited edition", depending on the year. For a $100 price increase over the LA125 the tractor offered a two-cylinder engine, high-back seat, larger tires, and front bumper. | |
Variants | |
| 42-inch deck | |
| 48-inch deck | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. Adjustable seat and cup holder. Optional nylon canopy. (10 position, 5.5-inches travel) |
LA135 Serial Numbers | |
| Location: | Serial number plate under the left-rear fender. |
| 2008 | 050001 |
| 2009 | 200001 |
| 2010 | 300001 |
Electrical | |
| Ground | negative |
| Charging amps | 9 |
| Battery volts | 12 |
| Battery Group | U1 |
Engine Detail | |
| Briggs & Stratton | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement | 655 cc 40 ci |
| Bore/Stroke | 2.97x2.89 inches 75 x 73 mm |
| Power | 22 hp 16.4 kW |
| Air cleaner | paper and foam elements |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Intake valve clearance | 0.005 inches 0.127 mm |
| Exhaust valve clearance | 0.005 inches 0.127 mm |
Transmission | |
| Transmission | Tuff Torq T40 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
Dimensions | |
| Wheelbase | 48.9 inches 124 cm |
| Length | 68.75 inches 174 cm |
| Width | 51.75 inches (with mower deck) 131 cm |
| Height | 44.5 inches 113 cm |
| Weight | 470 lbs 213 kg |
