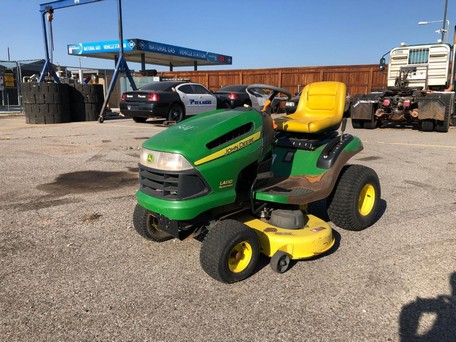

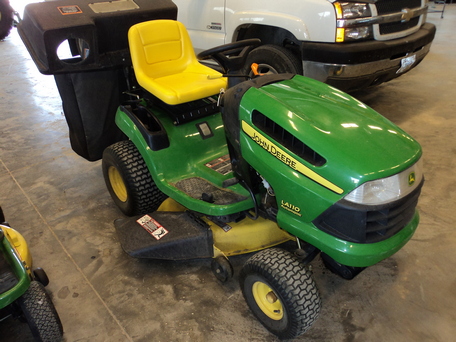

John Deere LA110
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Lawn tractor |
| Factory | Greeneville, Tennessee, USA |
| Original price | $1,649 (2007 ) |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | manual |
LA110 Serial Numbers | |
| Location: | Serial number decal under the rear fender on the left side of the tractor. |
| 2007 | 010001 |
Electrical | |
| Ground | negative |
| Charging amps | 9 |
| Battery volts | 12 |
Engine Detail | |
| Briggs & Stratton 31P677 | |
| gasoline | |
| 1-cylinder | |
| Displacement | 501 cc 30.6 ci |
| Bore/Stroke | 3.57x3.06 inches 91 x 78 mm |
| Power | 19.5 hp 14.5 kW |
| Air cleaner | paper and foam elements |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |
| Sparkplug gap | 0.030 inches 0.762 mm |
Transmission | |
| Transmission | Tuff Torq K46 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil change | sealed unit, owner service is not recommended |
Dimensions | |
| Wheelbase | 48.9 inches 124 cm |
| Length | 68.75 inches 174 cm |
| Width | 51.75 inches 131 cm |
| Height | 44.5 inches 113 cm |
| Weight | 450 lbs 204 kg |
