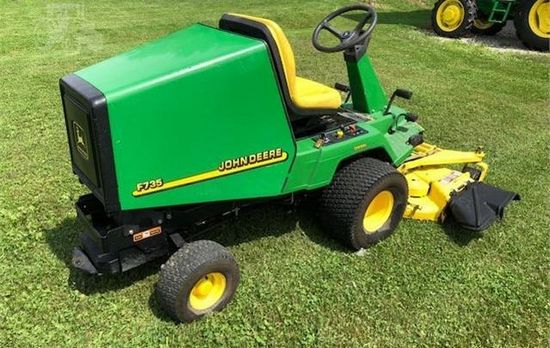

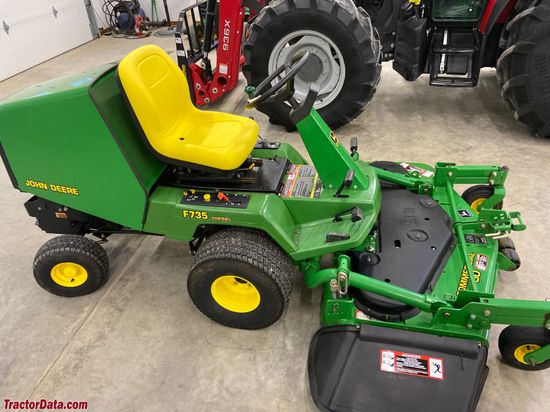

John Deere F735
Type: Front-mount Mowers
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Front-mount mower |
| Factory | Fuquay-Varina, North Carolina, USA |
| Original price | $111,105 (2003 48 ) |
| Original price | $11,234 (2003 54 ) |
| Original price | $11,957 (2003 60 ) |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | power |
| Brakes | drum |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Front PTO | independent |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery volts | 12 |
Engine Detail | |
| Yanmar 2V78 | |
| diesel | |
| 2-cylinder | |
| liquid-cooled | |
| Displacement | 753 cc 46 ci |
| Bore/Stroke | 3.07x3.09 inches 78 x 78 mm |
| Power | 20.5 hp 15.3 kW |
| Air cleaner | dry |
| Starter | electric |
| Starter volts | 12 |
Transmission | |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 2.5 qts 2.4 L |
Dimensions | |
| Wheelbase | 39.4 inches 100 cm |
| Length | 81 inches*Length without mower. 205 cm |
| Width | 39.4 inches 100 cm |
| Height | 47.6 inches 120 cm |
| Weight | 1314 lbs 596 kg |
| Ground clearance | 7 inches 17 cm |
