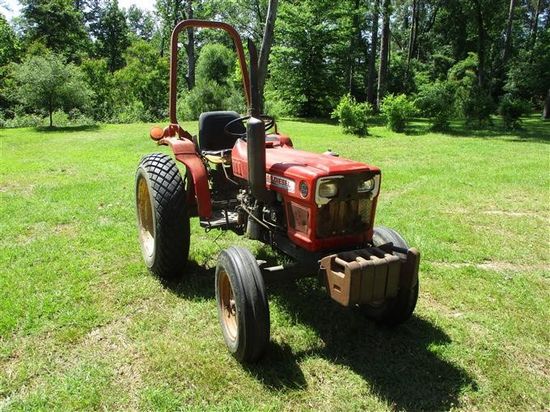

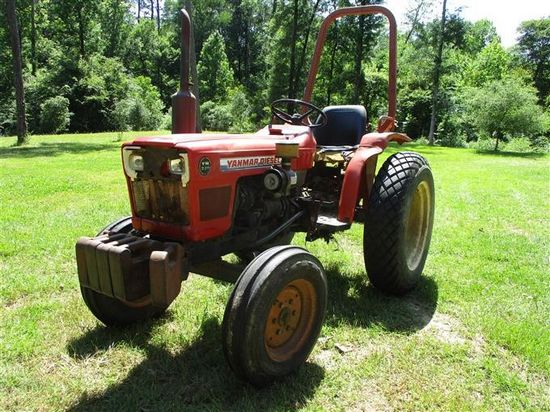

Yanmar YM220

Production: 1982 - 1991

Production
Manufacturer:	Yanmar
Type:	Compact Utility tractor
Factory:	Japan
Original price:	$8,300 (1991 )

Variants

2WD gear shift

4WD gear shift

2WD power shift

4WD power shift

Yanmar YM220 Power
Engine:	22 hp 16.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	manual
Brakes:	drum
Cab:	Two-post ROPS.
Transmission:	8-speed gear

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1168 lbs 529 kg

Power Take-off (PTO)
Rear RPM:	540

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar 3T75HA
diesel
3-cylinder
liquid-cooled
Displacement:	68.71 ci 1.1 L
Bore/Stroke:	2.95x3.35 inches 75 x 85 mm
Power:	22 hp 16.4 kW
Rated RPM:	2600
Starter volts:	12

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	dry disc

Dimensions
2WD Wheelbase:	61.2 inches 155 cm
4WD Wheelbase:	61.1 inches 155 cm
Length:	107.9 inches 274 cm
2WD Width:	49.8 inches 126 cm
4WD Width:	48.5 inches 123 cm
2WD Height (exhaust):	71.7 inches 182 cm
4WD Height (exhaust):	71.5 inches 181 cm
2WD Weight:	1871 lbs 848 kg
4WD Weight:	1840 lbs 834 kg
2WD Ground clearance:	14 inches 35 cm
4WD Ground clearance:	12.9 inches 32 cm
2WD Front tread:	38.5 inches 97 cm
4WD Front tread:	36.3 inches 92 cm
Rear tread:	39.4 inches 100 cm
