John Deere 165
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Lawn tractor |
| Factory | Horicon, Wisconsin, USA |
Variants | |
| gear | |
| hydrostatic | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
165 Serial Numbers | |
| Location: | Serial number plate on the left side of the frame, above the front axle. |
| 1986 | M00165X360001 |
| 1987 | M00165X420001 |
| 1988 | M00165X475001 |
| Final | M00165X595000 |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
Engine Detail | |

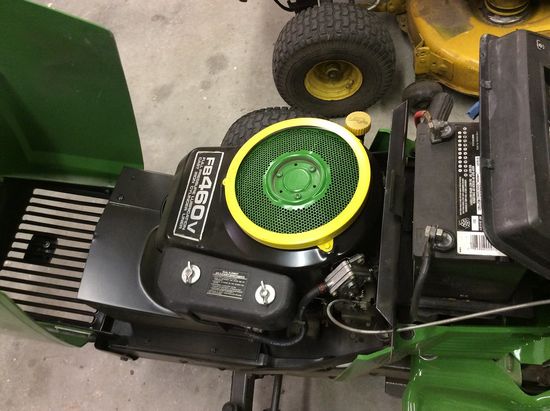

| Kawasaki FB460V | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 460 cc 28.1 ci |
| Bore/Stroke | 3.50x2.91 inches 89 x 74 mm |
| Power | 12.5 hp 9.3 kW |
| Rated RPM | 3350 |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |
Transmission | |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
Dimensions | |
| Wheelbase | 44.7 inches 113 cm |
| Length | 65 inches 165 cm |
| Width | 39.3 inches 99 cm |
| Weight | 470 lbs 213 kg |
