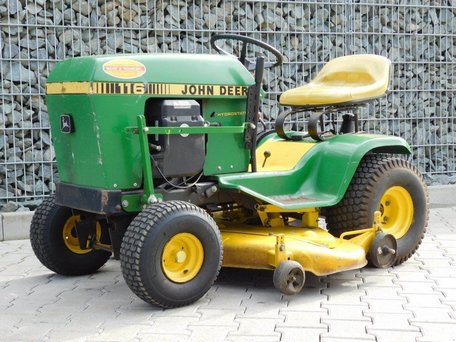

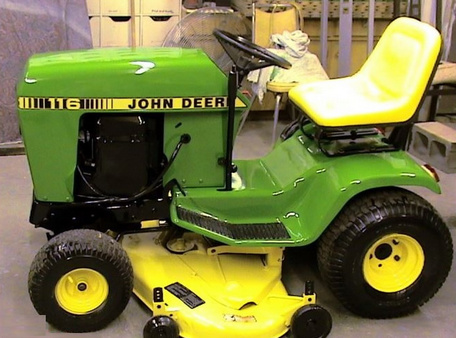

John Deere 116H

Production: 1983 - 1985

Production
Manufacturer:	John Deere
Type:	Lawn tractor

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	disc
Cab:	Open operator station.
Transmission:	hydrostatic

Capacity
Fuel:	2.5 gal 9.5 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	electric

116H Serial Numbers

1983: M00116C232001 1984: M00116C290001 1985: M00116C330001 1983: M00116D236001 (46-inch deck) 1984: M00116D300001 (46-inch deck) 1985: M00116D338001 (46-inch deck)

Electrical
Ground:	negative
Charging amps:	5

Engine Detail
Briggs & Stratton 402707
gasoline
2-cylinder
air-cooled vertical-shaft
Displacement:	655 cc 40 ci
Bore/Stroke:	3.44x2.16 inches 87 x 55 mm
Power:	16 hp 11.9 kW
Starter:	electric
Starter volts:	12
Sparkplug:	AC R046
Champion RJ-12
Autolite 308
Sparkplug gap:	0.030 inches 0.762 mm

Transmission
Manufacturer:	Eaton
Type:	belt-driven hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	1 qts 0.9 L *Hydrostatic
1.25 qts 1.2 L *Differential
Oil type:	Hy-Gard Low Vis

Dimensions
Wheelbase:	44.7 inches 113 cm
Length:	63.5 inches 161 cm
Height:	40.2 inches 102 cm
Weight:	510 lbs 231 kg
