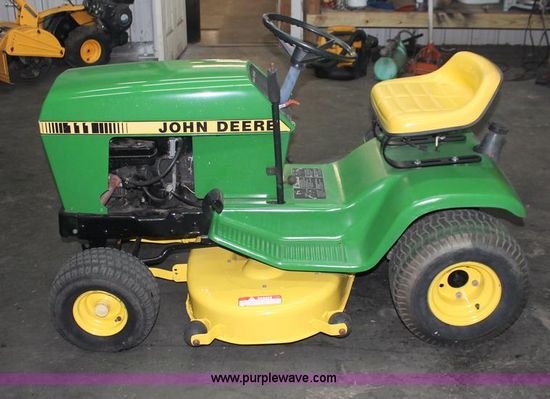

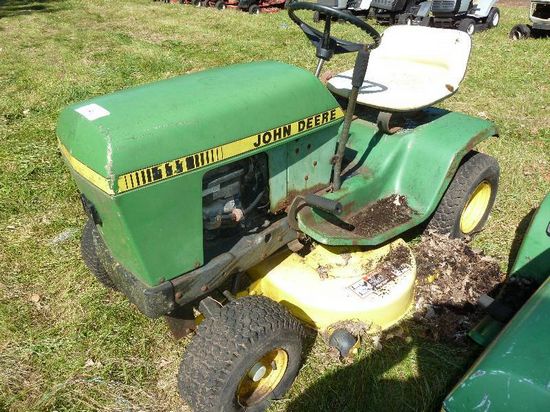

John Deere 111H
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Lawn tractor |
| Original price: | $2,450 (1985) |
Variants | |
| gear transmission | |
| hydrostatic transmission |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 2.5 gal 9.5 L |
Power Take-off (PTO) | |
| Front PTO: | independent |
| Clutch: | electric |
111H Serial Numbers | |
| 1982: M0111H190001 1983: M0111H257001 1984: M0111H285001 Final: M0111H315000 |
Electrical | |
| Ground: | negative |
| Charging amps: | 3 |
Engine Detail | |
| Briggs & Stratton 252707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement: | 399 cc 24.4 ci |
| Bore/Stroke: | 3.4375x2.625 inches 87 x 67 mm |
| Power: | 11 hp 8.2 kW |
| Starter: | electric |
| Starter volts: | 12 |
| Sparkplug: | AC CS-45 |
| Champion RJ17LM*CJ-8 in the operator manual, users report that the RJ17M is the correct plug | |
| Autolite A79 | |
| Sparkplug gap: | 0.030 inches 0.762 mm |
Transmission | |
| Manufacturer: | Eaton |
| Type: | hydrostatic |
| Gears: | infinite forward and reverse |
| Oil capacity: | 2.25 qts 2.1 L |
| Single-range hydrostatic transmission operated with right-hand control lever. | |
Dimensions | |
| Wheelbase: | 44.7 inches 113 cm |
| Length: | 61.9 inches 157 cm |
| Height: | 39.4 inches 100 cm |
| Weight: | 470 lbs 213 kg |
