Jacobsen Super Chief 1000 53082
Contents:
Super Chief 1000 Serial Location | |

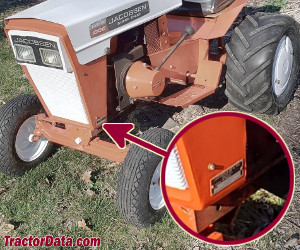

| Serial number plate on the left-front side of tractor, above front axle. |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
Engine Detail | |
| Kohler K241 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 390 cc 23.85 ci |
| Bore/Stroke | 3.25x2.875 inches 83 x 73 mm |
| Power | 10 hp 7.5 kW |
| Air cleaner | dry |
| Rated RPM | 3600 |
| Starter volts | 12 |
| Oil capacity | 2.5 qts 2.4 L |
Transmission | |
| Transmission | Hydro-Gear |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
Dimensions | |
| Wheelbase | 42 inches 106 cm |
| Width | 33 inches 83 cm |
| Height (steering wheel) | 39 inches 99 cm |
| Height (hood) | 34.5 inches 87 cm |
| Frame Ground clearance | 11.75 inches 29 cm |
| Clearance (front axle) | 8.75 inches 22 cm |
| Clearance (rear axle) | 6.25 inches 15 cm |
| Front tread | 30 inches 76 cm |
| Rear tread | 31.5 inches 80 cm |
