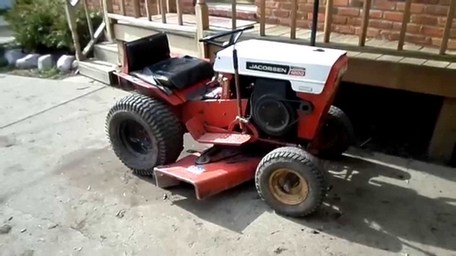

Jacobsen Chief 1200

Production: 1966 - 1968

Production
Manufacturer	Jacobsen
Type	Garden tractor
Factory	Racine, Wisconsin, USA

Variants

gear

hydrostatic

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	mechanical band
Cab	Open operator station.

Chief 1200 Serial Numbers
Location:	Left-front side of tractor, above front axle.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Kohler K301
gasoline
1-cylinder
air-cooled
Displacement	476 cc 29.07 ci
Bore/Stroke	3.375x3.25 inches 86 x 83 mm
Power	12 hp 8.9 kW
Air cleaner	dry
Rated RPM	3600
Starter volts	12
Oil capacity	2.5 qts 2.4 L

Transmission
Transmission	Peerless 2300
Type	belt-driven gear
Gears	4 forward and 1 reverse

Dimensions
Wheelbase	42 inches 106 cm
Width	33 inches 83 cm
Height (steering wheel)	39 inches 99 cm
Height (hood)	34.5 inches 87 cm
Ground clearance	11.75 inches*Ground clearance the the tractor frame. 29 cm
Clearance (front axle)	8.75 inches 22 cm
Clearance (rear axle)	6.25 inches 15 cm
Front tread	30 inches 76 cm
Rear tread	31.5 inches 80 cm
