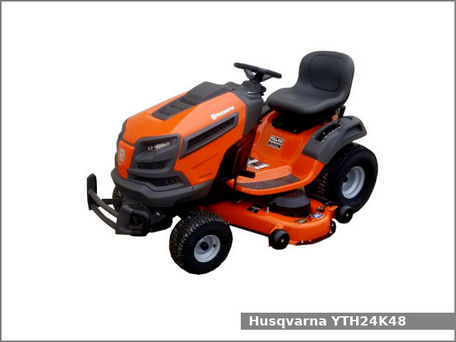

Husqvarna YTH24K48 Fast Tractor

Production: 2012

Production
Manufacturer:	Husqvarna
Type:	Lawn tractor
Original price:	$1900 (2013 )

Mechanical
Chassis:	4x2 2WD
Cab:	Open operator station with high-back seat.
Transmission:	hydrostatic

Capacity
Fuel:	3 gal 11.4 L

Power Take-off (PTO)
Mid PTO:	independent
Clutch:	electric

Electrical
Ground:	negative
Charging amps:	16

Engine Detail
Kohler SV725
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement:	725 cc 44.24 ci
Bore/Stroke:	3.268x2.638 inches 83 x 67 mm
Power (gross):	24 hp 17.9 kW
Compression:	9:1
Starter:	electric
Starter volts:	12
Sparkplug:	Champion RC12YC
Sparkplug gap:	0.030 inches 0.762 mm

Transmission
Transmission:	Tuff Torq K57
Type:	belt-driven hydrostatic
Gears:	infinite forward and reverse
Oil change:	sealed unit, service not recommended

Dimensions
Wheelbase:	48 inches 121 cm
Length:	69.3 inches 176 cm
Width:	50.8 inches 129 cm
Height:	41.4 inches 105 cm
Weight:	490 lbs 222 kg
Front axle:	Cast-iron
