Gravely 8199-G

Production: 1986

Production
Manufacturer	Gravely (a part of Ariens)
Type	Garden tractor

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	mechanical band
Cab	Open operator station.

Capacity
Fuel	5.3 gal 20.1 L
Hydraulic system	0.25 gal 0.9 L

Hydraulics
Capacity	0.25 gal 0.9 L
Oil type	ATF Dextron II

Power Take-off (PTO)
Mid PTO	independent

8199-G Serial Numbers
Location:	Under hood on right side, on instrument panel support frame.

Electrical
Ground	negative
Battery volts	12
Battery AH	42
Battery Group	BCI 22F

Engine Detail

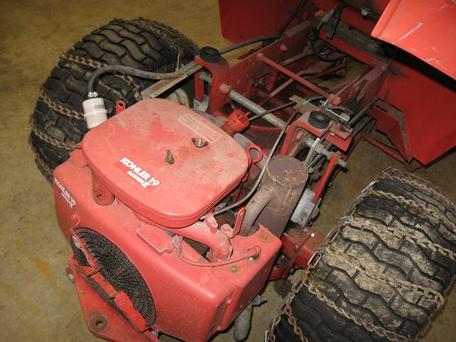

Kohler KT-19
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement	770 cc 47 ci
Bore/Stroke	3.125x3.0625 inches 79 x 78 mm
Power (gross)	19 hp 14.2 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Transmission
Type	shaft-driven gear
Gears	8 forward and 4 reverse
Oil capacity	6 qts 5.7 L
Oil type	10W-40 SC

Dimensions
Wheelbase	52.25 inches 132 cm
Length	82 inches 208 cm
Width	43.2 inches 109 cm
Height	46 inches 116 cm
Weight	857 lbs 388 kg
Shiping weight	895 lbs 405 kg
Rear axle	5-bolt flange
