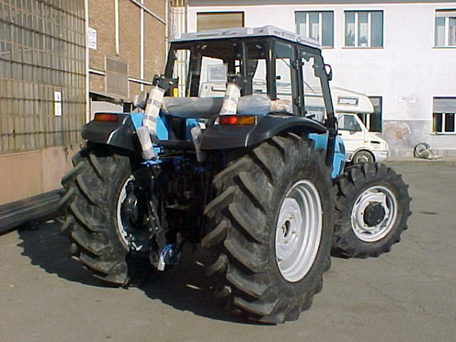

Landini Atlas 100

Production: 1999 - 2001

Production
Manufacturer:	Landini (a part of Argo)
Type:	Utility tractor

Landini Atlas 100 Power
Engine:	93 hp 69.4 kW
PTO (claimed):	86 hp 64.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	electro-hydraulic front and rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmissions:	12-speed shuttle
24-speed shuttle with creeper
24-speed shuttle with overdrive

Hydraulics
Pressure:	2610 psi 180.0 bar
Valves:	2
Pump flow:	14.2 gpm 53.7 lpm
Total flow:	20.6 gpm 78.0 lpm
Steering flow:	6.3 gpm 23.8 lpm

Tractor hitch
Rear Type:	II
Rear lift:	5732 lbs 2600 kg
9590 lbs 4350 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	mechanical dry disc
Rear RPM:	540/750 (1.375)
540/1000 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Perkins 1004-40T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	243.5 ci 4.0 L
Bore/Stroke:	3.937x5.00 inches 100 x 127 mm
Emissions:	Stage I
Power:	93 hp 69.4 kW
Rated RPM:	2200
Torque:	285.4 lb-ft 387.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	94.9 inches 241 cm
Length:	164.6 inches 418 cm
Width:	75.9 inches 192 cm *Minimum
Height (steering wheel):	67.7 inches 171 cm
Height (ROPS):	102.4 inches 260 cm
Weight:	7385 lbs 3349 kg
