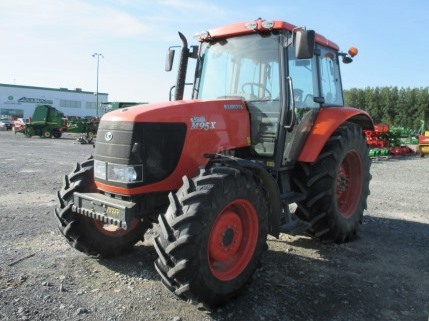

Kubota M95X

Production: 2005 - 2007

Production
Manufacturer:	Kubota
Type:	Row-Crop tractor
Original price:	$52,719 (2011)

Kubota M95X Power
Engine (net):	95 hp 70.8 kW
PTO (claimed):	80 hp 59.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	electro-hydraulic front and rear
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Cab standard with heat and air-conditioner.
Transmission:	16-speed partial power shift

Capacity
Fuel:	50.2 gal 190.0 L
Hydraulic system:	16.6 gal 62.8 L
Front axle:	11.1 qts 10.5 L

Hydraulics
Type:	open center
Capacity:	16.6 gal 62.8 L
Pressure:	2844 psi 196.1 bar
Valves:	2 to 4
Pump flow:	18.1 gpm 68.5 lpm
Total flow:	31.3 gpm 118.5 lpm
Steering flow:	15.8 gpm 59.8 lpm

Tractor hitch
Rear Type:	II
Rear lift (at ends):	5,809 lbs 2634 kg
Rear lift (at 24"/610mm):	5,209 lbs 2362 kg
9,447 lbs 4285 kg (optional)

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@2205 1000@2210

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	80
Battery CCA:	900
Battery volts:	12
Battery AH:	100

Engine Detail
Kubota V3800TE2
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	230 ci 3.8 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
Air cleaner:	dual 8-inch dry element
Rated RPM:	2600
Starter:	electric
Starter volts:	12
Oil capacity:	11.3 qts 10.7 L
Coolant capacity:	9.6 qts 9.1 L

Transmission
Transmission:	Intelli-Shift
Type:	partial power shift
Gears:	16 forward and reverse
Clutch:	electro-hydraulic wet disc
Oil capacity:	66.4 qts 62.8 L

Dimensions
Wheelbase:	95.6 inches 242 cm
Length:	163.4 inches 415 cm
Width:	83.7 inches 212 cm
Height:	103.9 inches 263 cm
Weight:	9,050 lbs 4105 kg
Ground clearance:	23.2 inches 58 cm
Front tread:	60.2 to 65.4 inches 152 to 166 cm
Front tread:	80 inches 203 cm (optional)
Rear tread:	60.2 to 80.1 inches 152 to 203 cm
