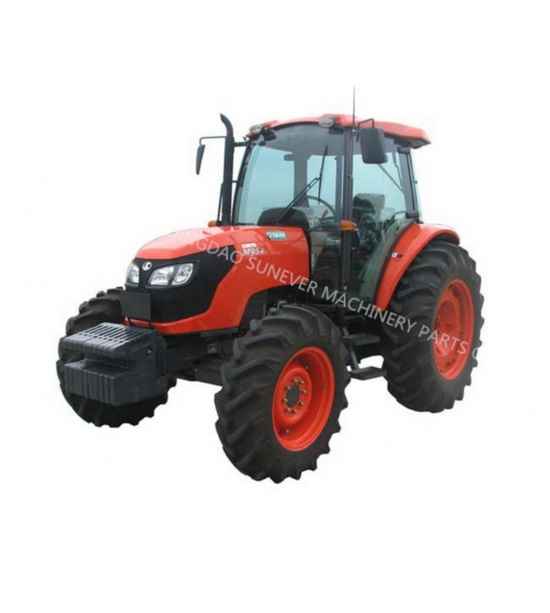

Kubota M90A

Production: 2009 - 2013

Production
Manufacturer:	Kubota
Type:	Utility tractor

Kubota M90A Power
Engine:	88.8 hp 66.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	16-speed power shift
24-speed creeper

Tractor hitch
Rear Type:	II
Control:	position and electronic draft control
Rear lift:	8598 lbs 3900 kg
11023 lbs 5000 kg *With optional lift cylinder.

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@2405 1000@2529

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota V3800-T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	230 ci 3.8 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
Power:	88.8 hp 66.2 kW
Fuel system:	direct injection
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	95.9 inches 243 cm
Length:	168.1 inches 426 cm
Width:	72.6 inches 184 cm
Height:	103.2 inches 262 cm
Weight:	7782 lbs 3529 kg
Ground clearance:	13.4 inches 34 cm
Front tread:	52.4 to 59.8 inches 133 to 151 cm
Rear tread:	52 to 75.6 inches 132 to 192 cm
